Payment & Shipping Terms:
|Products Name:||FRP Reinforced Grating||Specification:||25*38*38mm,38*38*38mm,50.8*50.8*50.8mm,19*38*38mm,19*50*50mm|
|Feature:||Fire Resistance,anti Corrosion||Panel Size:||3660mm*1220mm;1000mm*4000mm;or Your Request|
|Thickness:||25mm,30mm,38mm,50mm||Application:||Floor,Walkway, Platform, Trench Cover|
fiberglass walkway grating,
frp molded grating
FRP Reinforced Grating

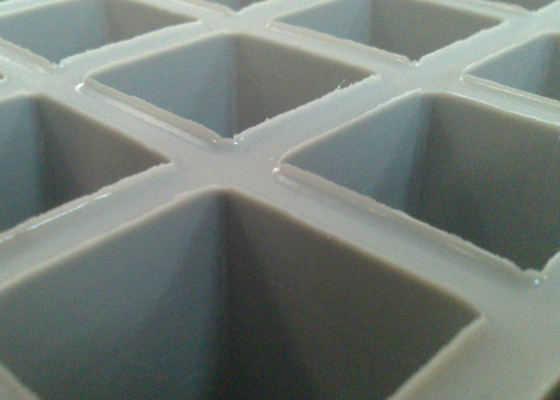

Molded FRP grating, a kind of plate with certain regular space, is made from a matrix of reinforced glass fiber and unsaturated polyester resin, compounded by casting the matrix in a large metal mold with resin after manual yarn-typesetting.
Molded FRP grating has the characteristics of hlight weight, high strength, corrosion protection, prevent slippery, flame retardant, aging resistance, impact resistance, etc.
FRP Grating Specification
Standard panel size
|2||1247X4047, 1007X4047||20X20/ 40X40||9||15|
|4||1007X4047, 1007X3007, 1247X4047||40X40||12.2||25|
Advantages of FRP Grating
A: High anti-fire
B: High anti-corrosion: FRP will not rot and are impervious to a broad range of corrosive elements. This feature makes FRP a natural selection for indoor or outdoor structures in pulp and paper mills, chemical plants, water and sewage treatment plants, structural near salt water and other corrosive environments.
C: High anti-slippery and safety: Fiberglass grating is recommended when corrosion protection and safety are your goal.Highest slip resistance to suit all industrial flooring applications.
D: Light but high loaded strength: FRP is 20-25% the weight of steel and 70% the weight of aluminum. FRP are easily transported, handled and lifted into place. Total structures can often be preassembled and shipped to the job site ready to installation. FRP is stronger than structural steel on a pound-for pound basis. It has been used to buildings, walkway, sub-floors and platforms.
E: Non-conduction or magnetic: FRP grating are ideal for applications such as catwalks, flooring, platforms, and shelves.
F: Easy installation/ Long service life & maintenance free: easy to install and offers optimal performance for over 15 years without maintenance.
G: Rich colors & customization sizes
