Product Details:
Payment & Shipping Terms:
|
Model Number:: | Steel Grating Clamps | Material:: | Iron,Stainless Steel Q235 |
---|---|---|---|
Finish Treatment:: | 1.galvanized, 2.untreated(black Self-color), 3.painted | C-B:: | 100mm And 50mm |
Bearing Bar:: | 5mm And 6mm | China Standards: | YB/T 4001.1-2007 |
Delivery Time:: | 5days After Deposit | Type: | Type A B C |
High Light: | bar grating clips,grating saddle clips |

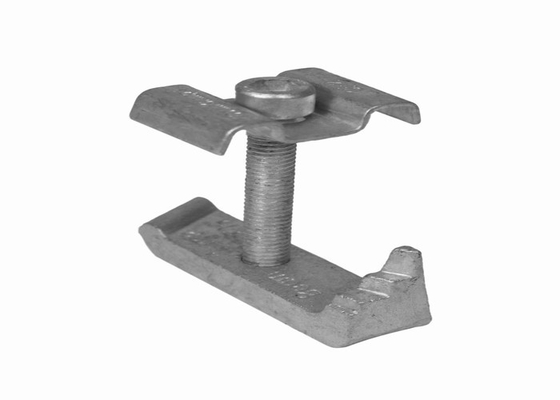

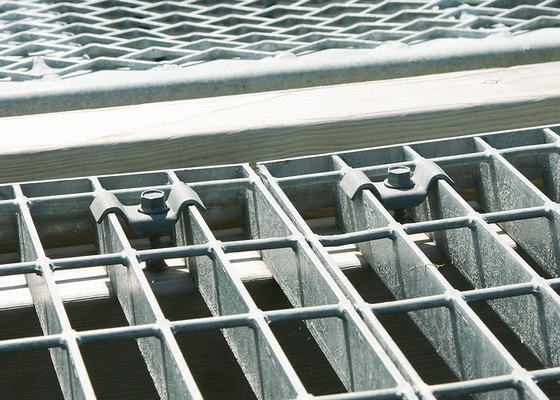

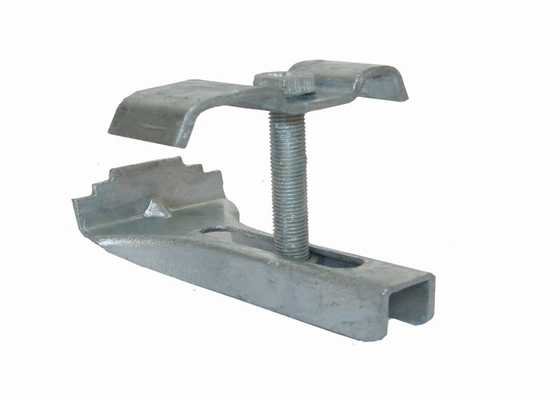

Galvanized steel grating saddle clamps steel grating M clips
We design and manufacture many kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating, I Bar Type Steel Grating and other gratings. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We also supply standard steel grating and in customized shapes per client's requirements.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement but 30, 40, 60mm are recommended. America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on.>
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel ASTM A36 or Q235) ,Stainless Steel 304 or 316
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.
ITEM NO. | 7910901 |
SPEC. | 88.5*48mm |
MATERIAL | Carbon steel |
FINISH | Hot galvanizing |
Length of screw | 75mm |
MOQ | 2000pcs |
PACKAGING | With carton outside |
DELIVERY | 40 days after receiving deposit |
PAYMENT | T/T 30% as deposit, 70% paid upon the copy of B/L |
TERMS OF DELIVERY | By sea /air |
REMARK | ODM and OEM service can be supplied |
No. | Terms | Description |
1 | Material | Low carbon,middle carbon,stainless steel |
2. | Material standard | GB700-88,ASTM(A36),BS4360(43A),AS3679 |
3. | Bearing bar size |
20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5, 40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc, |
4. | Bearing bar pitch | 15,20,25,30,33,35,38,40,50,60,80,90mm |
5. | Cross bar pitch | 24-200mm |
6. | Surface treatment | Hot dipped galvanized,painted,self-color, |
7. | Grating standard |
YB/T4001.1-2007, ANSI/NAAMM(MBG531-88), BS4592-1987, AS1657-1985 |
8. | Bearing bar type | F,I ,S,IS type |
9. | Application | Floor walkway,industrial platform,stair tread,metal ceiling |
10. | Feature |
Fine appearance,anti-corrosive,simple installation,light weight, high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion |
11. | Payment terms | TT,L/C |
12. | Package |
Pallets in containers packed by steel strap and worthy sea shipping, or according to the customers' requirements |
13. | Product capacity |
10days for a 20” |
