Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway

My grate came today and it fit perfectly. Thank you. Let me know if there is anywhere that I can leave positive feedback about your company!

—— Andrew Mullen

I'm Online Chat Now

Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway

China Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway supplier
Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway supplier Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway supplier

Large Image :  Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway

Product Details:

Certification: ISO9001,SGS
Model Number: BY-03

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meter
Packaging Details: Packed in seaworthy,commonly bundled by bearing bar.
Delivery Time: 5-9 working days
Supply Ability: 100 ton/week
Detailed Product Description
Item Name: Steel Floor Grating Color: Silver,Black
Surface Treatment: Untreated, Painting Or Hot Dip Galvanizing Bearing Bar Pitch: 15,20,25,30,33,35,38,40,50,60,80,90mm
Grating Standard: YB/T4001.1-2007, Steel Flat Type: Type F,Type I, Type S,Type IS
High Light:

steel walkway grating

,

steel mesh flooring

32x5 Hot Dip Galvanized Steel Grating With Corrosion Resistant


Description:
Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform,pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc

1. Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2. Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3. Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4. Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5. Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS


Grating Standardizations:

Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A ) BS729
Australia AS1657-1992 AS3679 AS1650



Common specifications:

Name
Steel grating
Material
Low carbon steel / Stainless steel
Grade
CN: Q235, Q345, USA: A36, UK: 43A
Standard
CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification
CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size
20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch
20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type
Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size
5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size
3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request
Surface treatment
Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard
CN: GB/T13912, USA: ASTM (A123), UK: BS729
Color
Silver/Black
Application
petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

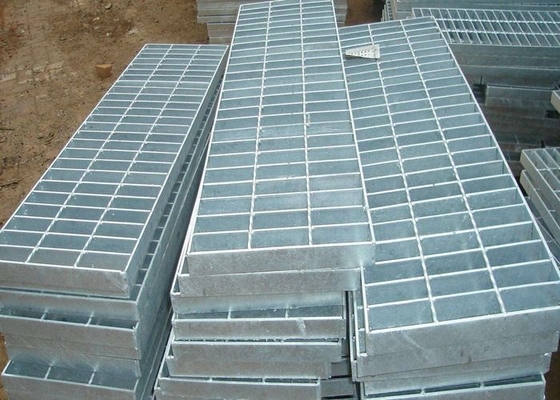

Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway

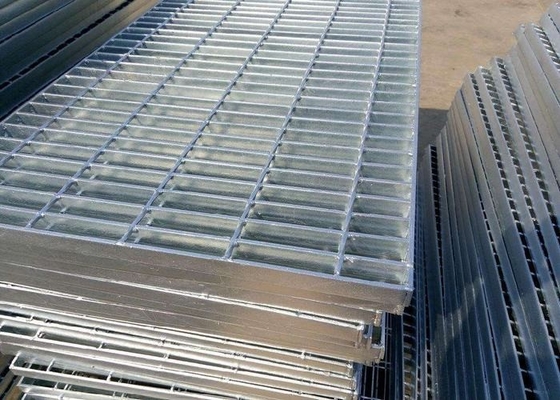

Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway

 Application

Corrosion Resistant Galvanized Steel Grating Silver 32 X 5 Metal Walkway
