Product Details:
Payment & Shipping Terms:
|
| Name:: | Steel Grating Clamps | Company Certificate:: | ISO 9001:2002 |
|---|---|---|---|
| C-B:: | 100mm And 50mm,60mm | Bearing Bar:: | 5mm And 6mm |
| China Standards: | YB/T 4001.1-2007 | Quality Inspection:: | ISO 9001:2002 |
| Surface:: | Untreated, Hot Dip Galvanized, Painted | Dimensions:: | Type A B C |
| High Light: | bar grating clips,grating saddle clips |
||
Heavy Duty Galvanized Steel Grating Clamp used in power plant
Products Detail

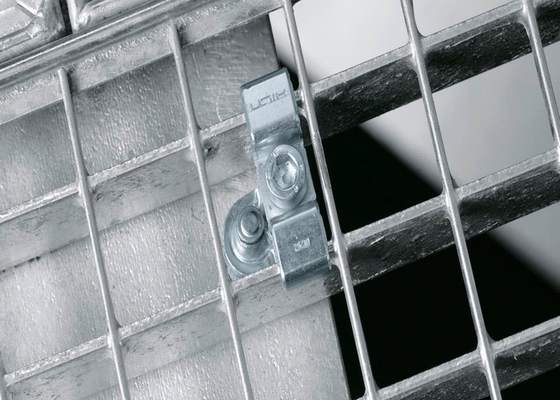

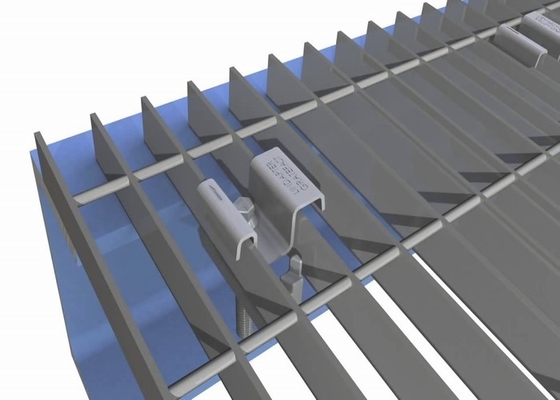

The Grating Clip is a cost effective method of securing steel grating to existing structural steel members. The use of grating fasteners eliminates costly and time consuming welding and drilling. No access below the grating is required, resulting in a quick and simple installation.
We are specialized in grating bolts and nuts for steel grating.
Best quality and competitive price and faster delivery time.
Name : grating clip
Material : mild steel
Surface Treatment : hot dip Galvanized
Competitive price and good quality !!
We are Professional factory for grating clips ,
we have stamping machines from 6.3tons to 125tones ,
now we can do stamping processing , welding processing , bending processing ,
and all kinds of the surface treatment(powder coated , zinc plated , hot dip Galvanized ,
and so on .
Gratings should be anchored to the supporting structure. This can be done in various ways. Here are some of the alternatives recommended by Weland. Grating fixings are available as both complete and separate components. Clips are available for ensuring load transfer between gratings.
The components are also available in hot dip galvanised and stainless steel versions.
Hot dip Galvanized, pickled, Electrochemically polished, Electrolyte oxidised, Baked and varnished, Bituminated, Power coated, Chromated and Electrolytic galvanising.
Clamps for the steel grating below size
| No. | Item | Description |
| 1 | Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
Quality Standard
| Steel grating standard | Steel Material Standard | Hot Dip galvanizing Standard | |
| China | YB/T4001.1-2007 | GB700-88 | GB/13912-92 |
| USA | ANSI/NAAMM(MBG531-93) | ASTM(A36) | ASTM(A123) |
| England | BS4592-1:1995 | BS4360(43A) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
