Plain Bar Stainless Bar Grating , Anti Corrosive Floor Grates Stainless Steel

Plain Bar Stainless Steel Grating Walkway 19W4 Anti Corrosive

1. Description

Steel Bar Gratings are manufactured with the world’s first-class computer-controlled pressure resistance welding machine by electro-forging the twisted square-steel into flat steel.Steel Bar Gratings are classified into three styles,namely plain style,serrated and I style as per the upper edges of bearing bars .More than 200 varieties are available based on specifications and spacing of bearing bars ,and that of cross roda.Different protective treatment can be made on the surface as environment varies.

2. Application

steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed :

• Power plant
• Chemical plant
• Oil Refinery
• Steel plant
• Machinery plant
• Paper-making factory
• Cement plant
• Civil engineering
• Wastewater treatment
• Pharmacy industry
• Food processing

3. Specification

4. Feature Advantage

1. Attractive appearance:Simple outline.silver colour,and modern.

2. Optimum water draining:Water leakage area reaches 83.3%,which is more than two times larger than that of cast iron.

3. Hot-dip galvanizing:Good antirust performance,maintenance free and replacement free.

4. Design of preventing theft:The cover is connected with the frame by gemel,which ensures protection against theft,safety,and convenient opening.

5. Saving investment:With large span,the cost is lower than that of cast iron when under heavy load.And the replacement expenses in case of theft and crushing will be saved.

6. High strength:With strength:With strength and toughness far higher than those of cast iron,it can be used in the environment with large span and heavy load,such as the wharf and the airport.

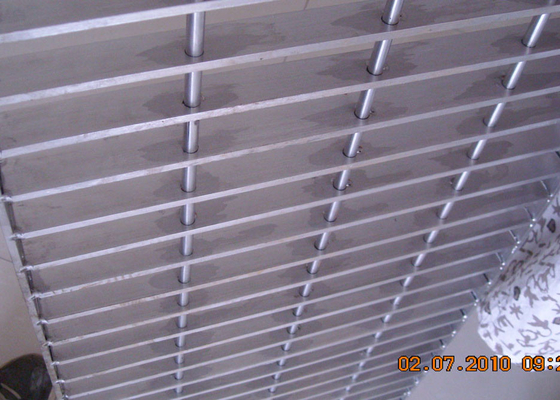

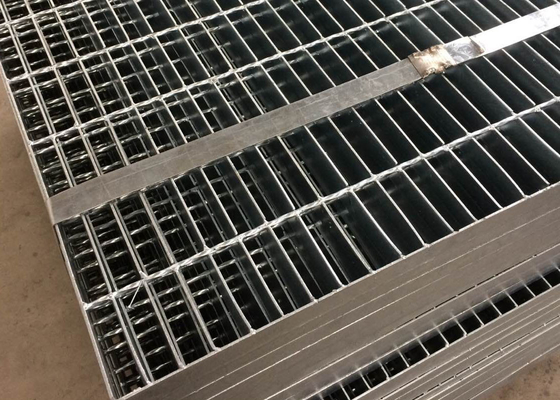

5. Pictures
