Square Mesh Plastic Floor Grating Grey Color Fire Resistance Material

My grate came today and it fit perfectly. Thank you. Let me know if there is anywhere that I can leave positive feedback about your company!

—— Andrew Mullen

I'm Online Chat Now

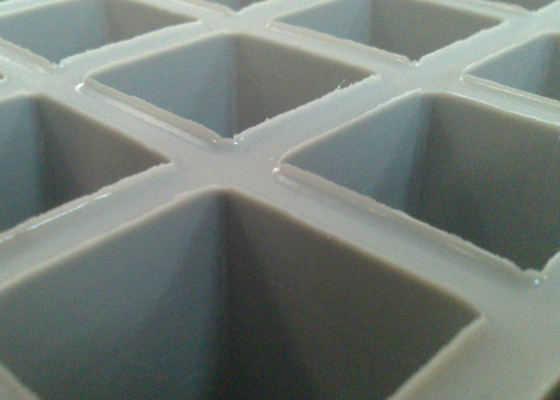

Square Mesh Plastic Floor Grating Grey Color Fire Resistance Material

China Square Mesh Plastic Floor Grating Grey Color Fire Resistance Material supplier
Square Mesh Plastic Floor Grating Grey Color Fire Resistance Material supplier Square Mesh Plastic Floor Grating Grey Color Fire Resistance Material supplier

Large Image :  Square Mesh Plastic Floor Grating Grey Color Fire Resistance Material

Product Details:

Certification: ISO9001,SGS
Model Number: FRY -15

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: usd 20.7 to 25 Square meter
Packaging Details: Sealed package:pallet & carton
Delivery Time: 5-9 working day
Supply Ability: 100TON/week
Detailed Product Description
Products Name: FRP Reinforced Grating Specification: 25*38*38mm,38*38*38mm,50.8*50.8*50.8mm,19*38*38mm,19*50*50mm
Feature: Fire Resistance,anti Corrosion Panel Size: 3660mm*1220mm;1000mm*4000mm;or Your Request
Thickness: 25mm,30mm,38mm,50mm Application: Floor,Walkway, Platform, Trench Cover
High Light:

fiberglass walkway grating


frp molded grating

FRP Reinforced Grating
Molded FRP grating, a kind of plate with certain regular space, is made from a matrix of reinforced glass fiber and unsaturated polyester resin, compounded by casting the matrix in a large metal mold with resin after manual yarn-typesetting.
Molded FRP grating has the characteristics of hlight weight, high strength, corrosion protection, prevent slippery, flame retardant, aging resistance, impact resistance, etc.
FRP Grating Specification


Standard panel size

Mesh size


Thickness (mm)
1 1220X3660 38X38 6 15
2 1247X4047, 1007X4047 20X20/ 40X40 9 15
3 997X3050, 1220X3660 38X38 12.4 25
4 1007X4047, 1007X3007, 1247X4047 40X40 12.2 25
5 1009X3007,1209X3657 25X100 13.87 25
6 997X3050, 1220X3660 38X38 14.7 30
7 1226X3665 25X152 22.4 38
8 1007X4047 40X40 19.8 40
9 1247X4047 20X20 23.7 40
10 1220X3660 38X38 54.5 60
11 1230X3670 38X38 17.5 P38
12 1220X3660 38X38 14 P30
13 1225X3660 50.7X50.7 22.17 50
14 1220X3660 19X19 23.4 38

Advantages of FRP Grating
A: High anti-fire
B: High anti-corrosion: FRP will not rot and are impervious to a broad range of corrosive elements. This feature makes FRP a natural selection for indoor or outdoor structures in pulp and paper mills, chemical plants, water and sewage treatment plants, structural near salt water and other corrosive environments.
C: High anti-slippery and safety: Fiberglass grating is recommended when corrosion protection and safety are your goal.Highest slip resistance to suit all industrial flooring applications.
D: Light but high loaded strength: FRP is 20-25% the weight of steel and 70% the weight of aluminum. FRP are easily transported, handled and lifted into place. Total structures can often be preassembled and shipped to the job site ready to installation. FRP is stronger than structural steel on a pound-for pound basis. It has been used to buildings, walkway, sub-floors and platforms.
E: Non-conduction or magnetic: FRP grating are ideal for applications such as catwalks, flooring, platforms, and shelves.
F: Easy installation/ Long service life & maintenance free: easy to install and offers optimal performance for over 15 years without maintenance.
G: Rich colors & customization sizes
 Square Mesh Plastic Floor Grating Grey Color Fire Resistance Material

Q: Why to choose us? Any advantages?
A: The answer is Yes.
1) The most preferential price:Our offer will be reasonable, our price will be cheaper in the
same quality.
2) Customize: We can make the product as your request, specification,size and quality can meet
your request.
3) Mix order: We accept mix order, different specification and small quantity order.
4) Quality assurance:We have professional quality testing team.They will test the products before shipment.
5) After-sales service:Any question is welcome.

Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.

Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested products in our site.

Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead, etc, we will do that as your request and calculate the price.

Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the products specification,quantity and other requirements. We will make the most competitive quotation to you as soon as possible.
