Trench Steel Grating Drain Cover For Flooring 24 - 200mm Cross Bar Pitch

Large Image : Trench Steel Grating Drain Cover For Flooring 24 - 200mm Cross Bar Pitch

Product Details:

Brand Name:	Gnee
Certification:	ISO9001,SGS
Model Number:	TC-1

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meter
Price:	USD 18 /Square meter
Packaging Details:	Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time:	5-9 working days
Supply Ability:	100 ton/week

Contact Now

Trench Steel Grating Drain Cover For Flooring 24 - 200mm Cross Bar Pitch

Description

Product Name:	Trench Cover	Material:	Q235
Surface Treatment:	Untreated, Painted Or Hot Dip Galvanized	Bearing Bar Size:	203,205,253,255,323,325,353,355,50*5
Bearing Bar Pitch:	30,33,35,38,40,50,60,80,90mm	Cross Bar Pitch:	24-200mm
Application:	Trench Cover,drain Cover	Certificate:	ISO90001
Highlight:	floor drain grate covers , floor trough drain grates

Trench Cover

1. Material: Mild Steel (Low Carbon Steel) or Stainless Steel

2. Surface Treatment: Untreated, Painting or Hot dip Galvanizing

3. Galvanized steel grating specifications:

4. Specification of steel grating:

No.
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatmen	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1992, Japan:JIS

5.steel gratings application:
flooring steel gratings
stair treads
sun shades
drain covers
security screen
manhole covers
mezzanine flooring
earth mats
shelving
Stanchions (hand rails)
trench covers

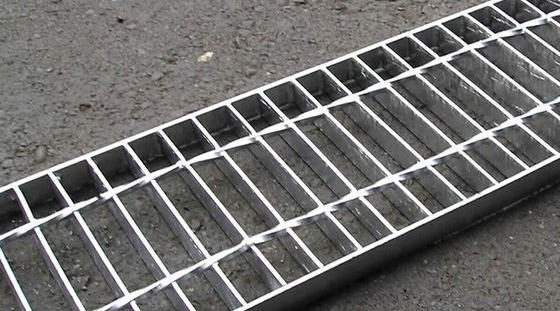

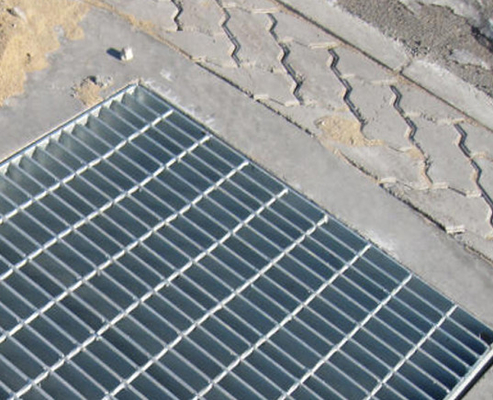

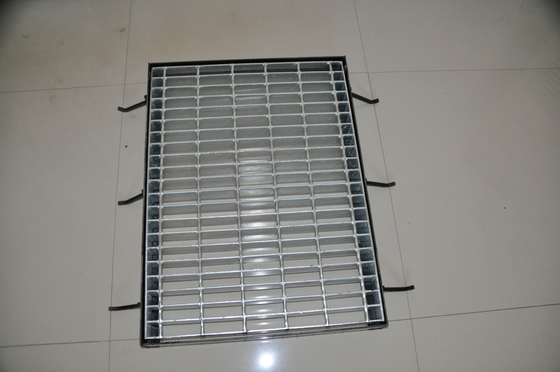

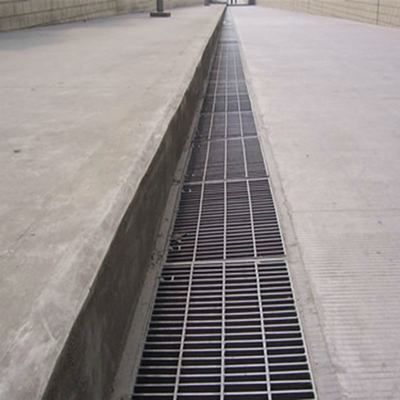

Product picture
Trench Steel Grating Drain Cover For Flooring 24 - 200mm Cross Bar Pitch 0

packing and loading container

FAQ

Q: Why to choose us? Any advantages?
A: The answer is Yes.
1) The most preferential price:Our offer will be reasonable, our price will be cheaper in the
same quality.
2) Customize: We can make the product as your request, specification,size and quality can meet
your request.
3) Mix order: We accept mix order, different specification and small quantity order.
4) Quality assurance:We have professional quality testing team.They will test the products before shipment.
5) After-sales service:Any question is welcome.

Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.

Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested products in our site.

Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead, etc, we will do that as your request and calculate the price.

Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the products specification,quantity and other requirements. We will make the most competitive quotation to you as soon as possible.
