Hot Dipped Galvanized Iron Wire with Q195 Low Carbon Steel and 30-60g/m² Zinc Coating for Construction and Binding
Place of Origin:Henan
Brand Name:GNEE
Certification:SGS
Tags:
Product Description

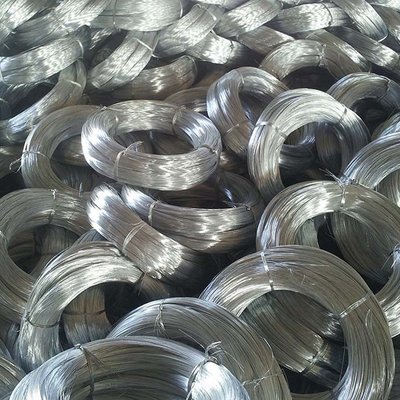

Hot Dipped Galvanized Iron Wire
Galvanized Iron Wire is designed to prevent rusting and features a shiny silver appearance. This solid, durable, and extremely versatile wire is widely used by landscapers, craft makers, construction professionals, ribbon manufacturers, jewelers, and contractors. Its rust-resistant properties make it particularly useful in shipyards, backyards, and various industrial applications.
Galvanized wire is available in two types: hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). It offers excellent toughness and flexibility, with zinc coating reaching up to 350 g/sqm. The substantial zinc coating provides superior corrosion resistance and durability.
Product Specifications
| Product Name | Galvanized steel wire |
|---|---|
| Surface Treatment | Hot dipped galvanized (HDG) |
| Material | Q195 low carbon steel |
| Type | Plain round |
| Tensile Strength | Soft 300-500MPA |
| Wire Diameter | 0.30mm, 0.45mm, 0.90mm, 1.25mm, 1.40mm, 1.60mm |
| Zinc Coating | 30-60g/m² |
| Elongation | 10% |
| Coil ID | 350mm-600mm |
| Coil Weight | 50kgs/100kgs/500kgs/coil, or as required |
| Usage | Construction Materials/Mesh wire |
| Standard | BIS 3975:1999, GB/T343, ASTM A370 |
| Max. Loading | Max. 28MT per 20ft container by 3+3+1 packing way |
| Origin | Tianjin, China |
| Packing Way | Each coil packed inside by plastic bag and outside by weaving bag, or as customer required |
Wire Gauge Specifications
| Wire Gauge | SWG (mm) | BWG (mm) | Metric (mm) |
|---|---|---|---|
| 8# | 4.06 | 4.19 | 4.00 |
| 9# | 3.66 | 3.76 | - |
| 10# | 3.25 | 3.40 | 3.50 |
| 11# | 2.95 | 3.05 | 3.00 |
| 12# | 2.64 | 2.77 | 2.80 |
| 13# | 2.34 | 2.41 | 2.50 |
| 14# | 2.03 | 2.11 | - |
| 15# | 1.83 | 1.83 | 1.80 |
| 16# | 1.63 | 1.65 | 1.65 |
| 17# | 1.42 | 1.47 | 1.40 |
| 18# | 1.22 | 1.25 | 1.20 |
| 19# | 1.02 | 1.07 | 1.00 |
| 20# | 0.91 | 0.89 | 0.90 |
| 21# | 0.81 | 0.813 | 0.80 |
| 22# | 0.71 | 0.711 | 0.70 |
Electro Galvanized Iron Wire
Electro galvanized iron wire is manufactured from choice mild steel through wire drawing and galvanizing processes. This type of wire features a uniform zinc coating, excellent corrosion resistance, and firm zinc adhesion. It is primarily used in construction, expressway fencing, flower binding, and wire mesh weaving.
- Size range: BWG 8-BWG 22 (BWG 8-BWG 28 available)
- Zinc coat: 8-18g/m²
- Tensile strength: 35-70kg/mm²
- Elongation: 10%-25%
- Packing: 0.1-500kgs/coil with plastic film inside and hessian cloth or woven bag outside
Additional Electro Galvanized Wire Details
- Diameter: BWG23-BWG6 (0.6mm-5mm)
- Zinc Coated: 10-30g/mm²
- Elongation: ≥18%
- Packing: 1-500kg/roll, PVC inside, woven bag outside
Ordering & Shipping Information
| Port | Tianjin, Qingdao CHINA |
|---|---|
| Payment Terms | T/T, L/C |
| Packing | Standard galvanized wire export package |
| Delivery Time | 10-30 days |
Our Services
- Inquiry with professional quotation
- Confirm price, lead time, logo design, payment terms
- Customer makes payment and provides bank receipt
- Production arrangement with progress photos and estimated completion time
- Shipping with tracking number provided (Balance against B/L copy or L/C payment terms accepted)
- Order completion upon customer satisfaction with received goods
