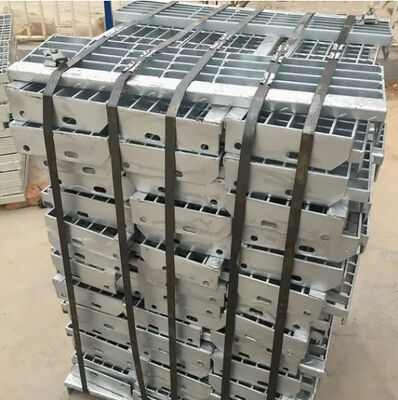

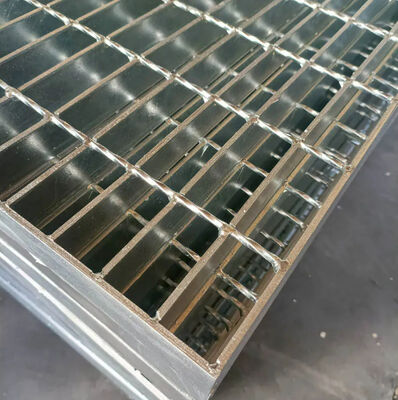

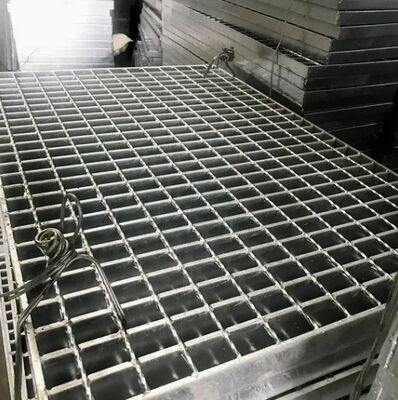

Q235 Low Carbon Steel Trench Drain Metal Grate , 3 - 10mm Drain Grate Cover

Name: Q235 Low Carbon Steel Trench Drain Metal Grate , 3 - 10mm Drain Grate Cover
Brand: Gnee Steel (tianjin) Co., Ltd
SKU: TC-04
Price: 284.00 USD
Availability: InStock

Certification:ISO9001,SGS

Model Number:TC-04

Minimum Order Quantity:10 square meter

Supply Ability:100 ton/week

Product Details

Highlight:

metal driveway drainage grates

floor drain grate covers

Surface Treatment: Galvanized,Painting

Grating Steel Material: Low Carbon Steel,mild Steel,stainless Steel

Surface Treatment: Untreated, Painted Or Hot Dip Galvanized

Bearing Bar Size: 20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5,50*5

Keywords: Trench Cover

Cross Bar Pitch: 24-200mm

Thickness: 3-10mm

Grating Standard: BS 4592-1987, AS 1657-1985, YB/T4001.1-2007

Product Description

Q235 Low Carbon Steel GI Heavy Duty Grating For TrenchDrain Cover

Description:

Floor trench cover is made of steel grating plate, it is easy to install, with light weight, good nearing

capacity, good inpact resistance etc. after hot-dip galvanizing progress, it is attractive and durable,

corrosion and rust protection, it is better than cast iron trench cover. Since steel grating adopt

rticulated juncture, it is easy to open and have excellent function on guard against theft.

Floor trench cover is widely used in municipal administration path, carwash house, garden

landscape facilities, residential district and school etc

Features:
1. Surface treatment adopt hot-dip galvanizing process: with great corrosion and rust protection.
2. Articulated juncture, it is easy to open and have excellent function on guard against theft.
3. Attractive and durable appearance
4. Big mesh and better draining water. Water leakage area can reach 83.3%, it is twice as cast iron trench cover.
5. It can save material: long-span and heavy-load, lower than the price of cast iron; And can save the cost due to theft or crush
and of replacement of the cast iron cover.
6. Various kinds of products, can customize according to client’s requirements

Galvanized steel grating specifications:

Steel Grating Standard	Steel Standard	Galvanized Standard
China standard	YB/T 4001.1-2007	GB/T 13912-2002
USA standard	ANSI/NAAMM(MBG531)	ASTM(A123)
U.K.standard	BS4592	BS729
Australia standard	AS1657	AS1650

	Item	Desceiption
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bear Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1992, Japan:JIS

Low Carbon Steel Trench Drain Metal Grate

Steel gratings application:
flooring steel gratings
stair treads
sun shades
drain covers
security screen
manhole covers
mezzanine flooring
earth mats
shelving
Stanchions (hand rails)
trench covers

Product Summary

Q235 Low Carbon Steel GI Heavy Duty Grating For TrenchDrain Cover Description: Floor trench cover is made of steel grating plate, it is easy to install, with light weight, good nearing capacity, good inpact resistance etc. after hot-dip galvanizing progress, it is attractive and durable, corrosion ...
