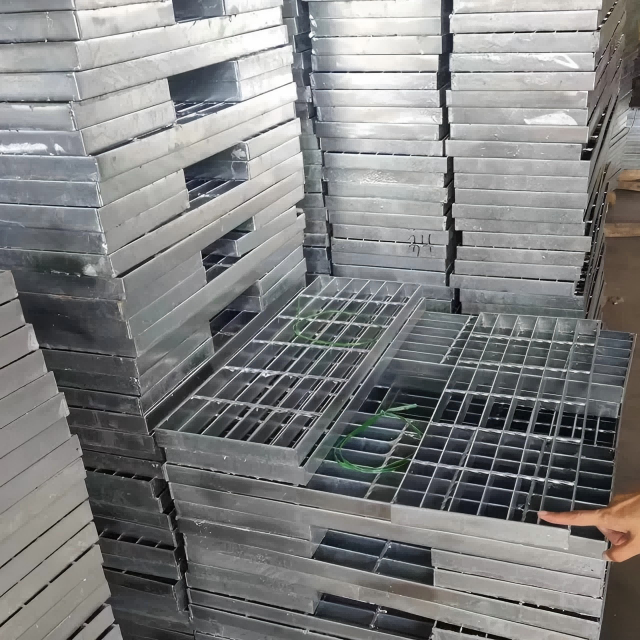

Features of Metal Bar Grating

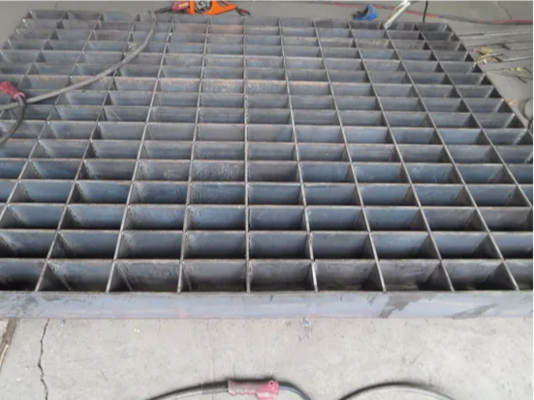

Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.
Materials of Steel Metal Grating
1) Low Carbon Steel Smooth Flat Bars,Low Carbon Steel Serrated Bars,Low Carbon I-Shaped Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 316 Grade Flat Bars.
1. Bearing bar: 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5 to 75x10mm.
2. Bearing bar pitch: 12.5, 15, 20, 25,30,35,40,45,60mm. US standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16", 1"x 1/4", 1-1/4"x 1/4",
1-1/2"x 1/4" etc.
3. Cross bar pitch:38,50,100.
4. Surface finishing treatment:Black, electric galvanized, hot dipped galvanized, painted.
5. Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
| eries | Pitch of Bearing bar | Pitch of Cross bar | Specifications of Bearing Bar (Width x Thickness) | |||||
| 25x3 | 32x3 | 25x4 | 40x4 | 20x5 | 25x5 | |||
| 1 | 30 | 100 | WA253/1 | WA253/1 | WA254/1 | WA404/1 | WA205/1 | WA255/1 |
| 50 | WB253/1 | WB253/1 | WB254/1 | WB404/1 | WB205/1 | WB255/1 | ||
| 2 | 40 | 100 | WA253/2 | WA323/2 | WA254/2 | WA404/2 | WA205/2 | WA255/2 |
| 50 | WB253/2 | WB323/2 | WB254/2 | WB404/2 | WB205/2 | WB255/2 | ||
| 3 | 60 | 50 | WB53/3 | WB323/3 | WB254/3 | WB404/3 | WB205/3 | WB255/3 |
| Series | Pitch of Bearing Bar | Pitch of Cross Bar | Specifications of Bearing Bar (Width x Thickness) | |||||
| 32x5 | 40x5 | 45x5 | 50x5 | 55x5 | 60x5 | |||
| 1 | 30 | 100 | WA325/1 | WA405/1 | WA455/1 | WA505/1 | WA555/1 | WA605/1 |
| 50 | WB325/1 | WB405/1 | WB455/1 | WB505/1 | WB555/1 | WB605/1 | ||
| 2 | 40 | 100 | WA325/2 | WA405/2 | WA455/2 | WA505/2 | WA555/2 | WA605/2 |
| 50 | WB325/2 | WB405/2 | WB455/2 | WB505/2 | WB555/2 | WB605/2 | ||
| 3 | 60 | 50 | WB325/3 | WB405/3 | WB455/3 | WB505/3 | WB555/3 | WB605/ |
1.Smooth Flat Bars
2.Swaged Bar Grating
3.Serrated Steel Bars
4.Press-Lock Steel Grating
5.I-Shaped Steel Bars
6.Plain Steel Grating
