Building Materials Galvanized Metal Steel Bar Grating with Fixing Clips for Municipal Projects

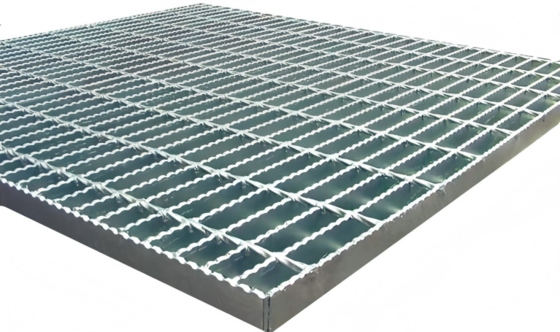

Large Image : Building Materials Galvanized Metal Steel Bar Grating with Fixing Clips for Municipal Projects

Product Details:

Brand Name:	GNEE
Certification:	ISO9001,SGS

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meter
Price:	Negotiable
Packaging Details:	Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time:	5-9 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 ton/week

Contact Now

Detailed Product Description

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Building Materials Galvanized Metal Steel Bar Grating with Fixing Clips for Municipal Projects 0

1.Galvanized steel grating:A36 is the common grade. After welding is completed, surface treatment will be carried out: mild steel grating will be hot-dip galvanized or painted to make it look beautiful or corrosion-resistant.

2.Stainless steel grating:Common grade is SS201, 304, 316, 316L. Stainless steel grating itself has a strong corrosion resistance, suitable for food processing and chemical fields.

3.I Bar Steel Grating:With its unique I-section design, it exhibits excellent bearing capacity and stability, and is suitable for heavy-loaded industrial platforms, bridges and other places, and has both ventilation and light transmission properties.

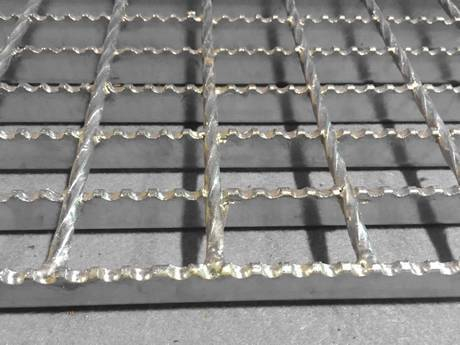

1. Galvanized steel grating

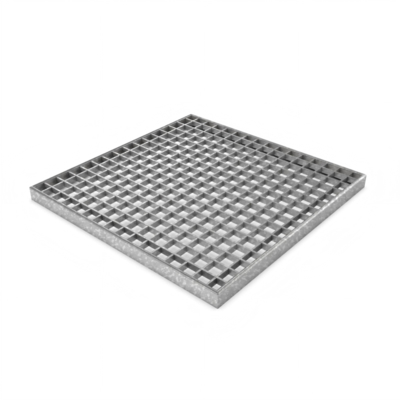

2. Stainless steel grating

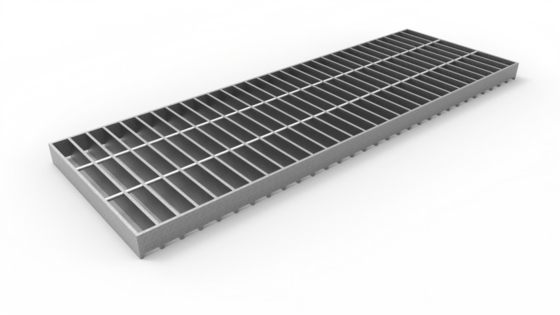

3. I bar steel grating

Building Materials Galvanized Metal Steel Bar Grating with Fixing Clips for Municipal Projects 1

Common Steel Grating Specification

Bearing bar pitch

cross bar pitch

bearing bar size ( depth*thickness)

20×3

25×3

40×3

20×5

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

G203/60/50

G253/60/50

G403/60/50

G205/60/50

G255/60/50
