Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating

Place of Origin:China

Brand Name:GNEE

Certification:ISO9001,SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:L/C, T/T

Supply Ability:100 ton/week

Product Details

Highlight:

heavy duty steel floor grating

hot dip galvanized steel grate

industrial steel bar grating

Product Description

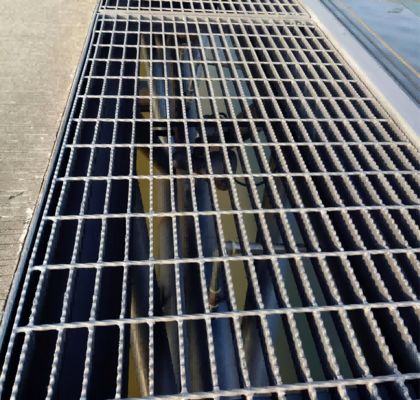

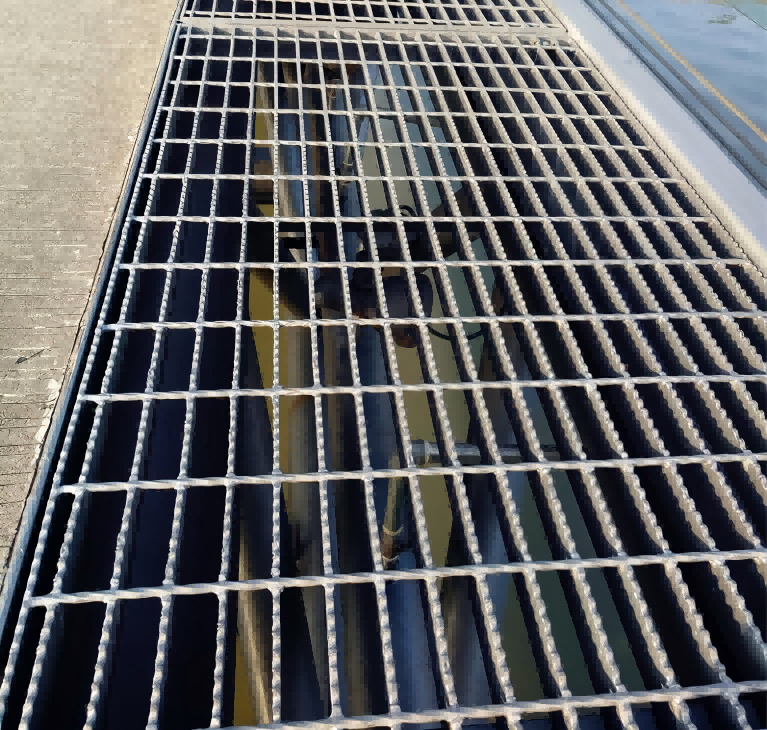

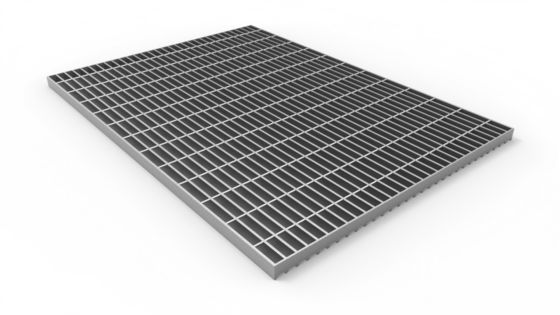

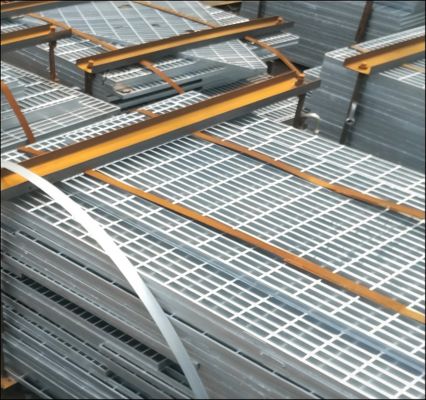

Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating

Hot Dipped Galvanized Heavy Duty Steel Grating 70mm x 6mm Bearing Bar

Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings.

Materials & Finishes

Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.

Heavy Duty Hot DIP Galvanized Steel Bar Grate

Table of Spacings

15-w-4	Bearing Bars at 15/16" O.C. Cross Bars at 4" O.C.	15-w-2	Bearing Bars at 15/16" O.C. Cross Bars at 2" O.C.
19-w-4	Bearing Bars at 1-3/16" O.C. Cross Bars at 4" O.C.	19-w-2	Bearing Bars at 1-3/16" O.C. Cross Bars at 2" O.C.
22-w-4	Bearing Bars at 1-3/8" O.C. Cross Bars at 4" O.C.	22-w-2	Bearing Bars at 1-3/8" O.C. Cross Bars at 2" O.C.
30-w-4	Bearing Bars at 1-7/8" O.C. Cross Bars at 4" O.C.	30-w-2	Bearing Bars at 1-7/8" O.C. Cross Bars at 2" O.C.
38-w-4	Bearing Bars at 2-3/8" O.C. Cross Bars at 4" O.C.	38-w-2	Bearing Bars at 2-3/8" O.C. Cross Bars at 2" O.C.

Banding

Heavy duty gratings are commonly subjected to shock and impact loads and it is highly recommended that all open ends be banded. The welded band bar helps distribute impact loads and minimizes distortion when subjected to repetitive traffic patterns.

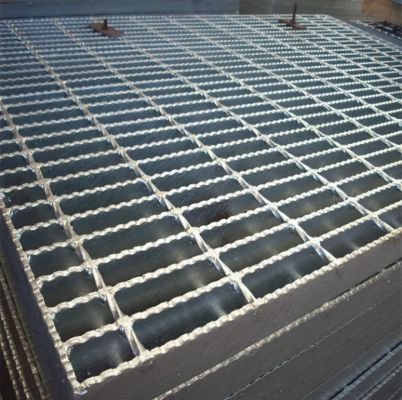

Serrated Surface

Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations.

How to Specify Heavy Duty Bar Grating

Select type of grating
- "W" for Welded Steel Grating
- "WS" for Welded Stainless Steel Grating
Select bar spacing from table above
Select bearing bar size from Load Tables
Specify Plain or Serrated surface
Specify banding and any additional trim required
Specify finish
- Bare steel (no finish)
- Painted (red, black, silver, other)
- Hot Dip Galvanized (per ASTM A-123)
- Other
Specify fasteners (if required) - Banding / Layout / Fasteners

Maximum Traffic Conditions

Traffic Type	Wheel Load (Ibs) (1/2 axle load +30% Impact)	Load Distribution Parallel With Axle	Perpendicular to Axle
H-25 Truck Traffic 40000lb.Axle Load Dual Wheels Modified AASHTD H-25	26,000	2(C)+25"	25"
H-20 Truck Traffic 32000lb.Axle Load Dual Wheels Modified AASHTD H-20	20,800	2(C)+20"	20"
H-15 Truck Traffic 24000lb.Axle Load Single Wheels Modified AASHTD H-15	15,600	2(C)+15"	15"
Automobile 6322 Ib Vehicle 3578 Ib.Load 60%Drive Axle Load	3,861	2(C)+9"	9"
5Ton Forklift 10000 Ib.Cap.LiftTruck 14000Ib.Vehicle 24,000 Ib.Table Load 85% Drive Axle Load	13,480	2(C)+11"	11"
3Ton Forklift 6,000 Ib.Cap.Lift Truck 9000Ib.Vehicle 15800 Ib.Table Load 85% Drive Axle Load	8.730	2(C)+7"	7"
1Ton Forklift 2,000 Ib.Cap.Lift Truck 4200Ib.Vehicle 6200 Ib.Table Load 85% Drive Axle Load	3,425	2(C)+4"	4"

Product Summary

Heavy Duty Hot DIP Galvanized Steel Bar Grate Floor Grating Hot Dipped Galvanized Heavy Duty Steel Grating 70mm x 6mm Bearing Bar Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and ...
