Stainless Steel Expanded Metal Wire Mesh for Construction

Large Image : Stainless Steel Expanded Metal Wire Mesh for Construction

Product Details:

Place of Origin:	China
Brand Name:	GNEE
Certification:	ISO9001,SGS

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meter
Price:	Negotiable
Packaging Details:	Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time:	5-9 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 ton/week

Contact Now

Stainless Steel Expanded Metal Wire Mesh for Construction

Description

Highlight:

stainless steel expanded metal mesh

construction wire mesh

expanded metal mesh for construction

Stainless Steel Expanded Metal Wire Mesh for Construction

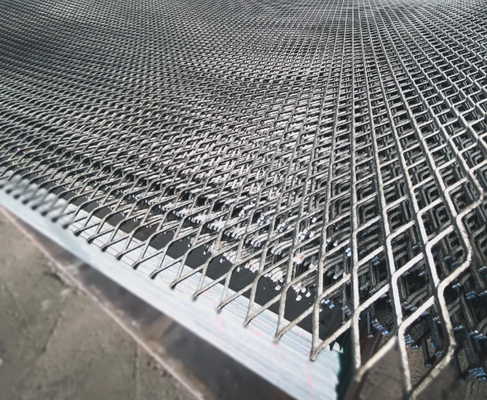

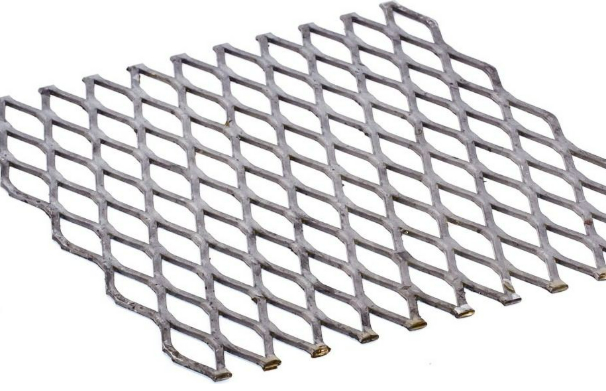

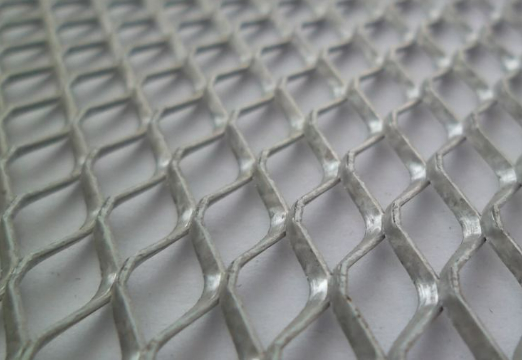

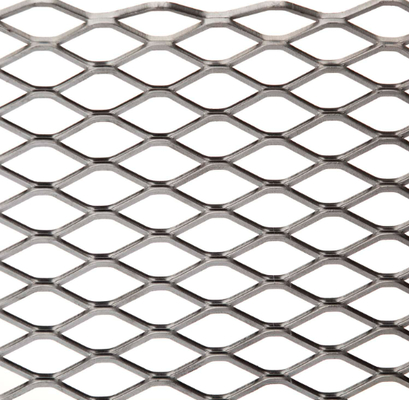

Expanded metal mesh or expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press. The sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.

Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.

GNEE STEEL also provide Expanded Metal Grating made from carbon steel plates for heavy-duty applications, which is more stronger and durable.

Material

Stainless Steel Sheet
Iron Steel Sheet
Aluminium Sheet

We can supply expanded netting in a variety of materials including aluminum, platinum, brass, steel, stainless steel, nickel, etc.

Features

Comes from the press after having been die cut and expanded
Ideal for safety guards on equipment or machinery
Economical and wear-resistance

Usage

Architectural Panels
Billboard Walkway
Catwalks & Walkway
Stairs & Balustrade
Drying Racks
Security Fences/Grilles
Window Guards & Machinery Guards
Garden Furnitures

Technical Specifications

Mesh thickness (mm)	Distance short (mm)	Distance long (mm)	Strip (mm)	Width (m)	Length (m)	Weight (kg/m²)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
