Raised Aluminium Expanded Metal Mesh

Place of Origin:China

Brand Name:GNEE

Certification:ISO9001,SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:L/C, T/T

Supply Ability:100 ton/week

Product Details

Highlight:

aluminium expanded metal mesh

raised expanded metal mesh

durable expanded metal mesh

Product Description

Raised Aluminium Expanded Metal Mesh

Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.

Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.

GNEE STEEL also provide Expanded Metal Grating made from carbon steel plates for heavy-duty applications, which is more stronger and durable.

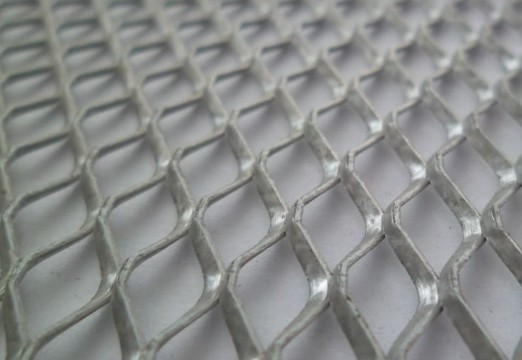

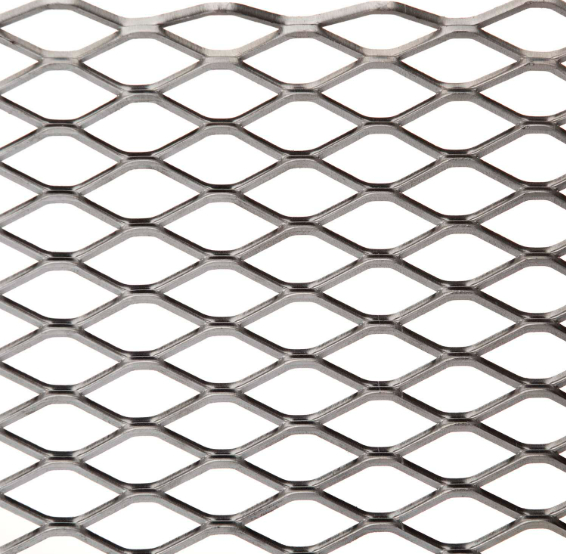

Raised Aluminium Expanded Metal Mesh product photo

Usage

Architectural Panels
Billboard Walkway
Catwalks & Walkway
Stairs & Balustrade
Drying Racks
Security Fences/Grilles
Window Guards & Machinery Guards
Garden Furnitures

Raised Aluminium Expanded Metal Mesh application photo

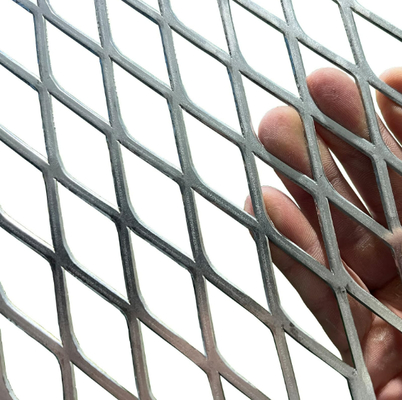

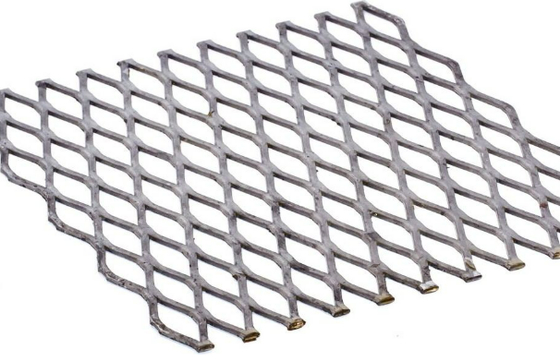

Raised Aluminium Expanded Metal Mesh close-up photo

Specifications

Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Sheet size is according to client's requirement
Length: According to Your Requirement

Standard Dimensions

Mesh thickness(mm)	Distance short(mm)	Distance long(mm)	Strip(mm)	Width (m)	Length(m)	Weight(kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

Product Summary

Raised Aluminium Expanded Metal Mesh Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform ...
