Expanded Metal Mesh Raised Aluminium

Place of Origin:China

Brand Name:GNEE

Certification:ISO9001,SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:L/C, T/T

Supply Ability:100 ton/week

Product Details

Highlight:

aluminium expanded metal mesh

raised expanded metal mesh

durable expanded metal mesh

Product Description

Expanded Metal Mesh Raised Aluminium

Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.

Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.

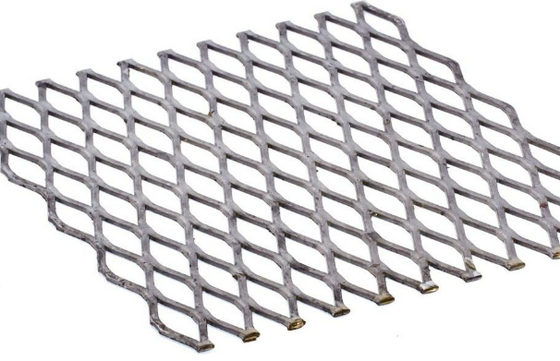

Expanded Metal Mesh Raised Aluminium product example

Material

Stainless Steel Sheet
Iron Steel Sheet
Aluminium Sheet
We can supply expanded netting in a variety of materials including aluminum, platinum, brass, steel, stainless steel, nickel, etc.

Features

Comes from the press after having been die cut and expanded
Ideal for safety guards on equipment or machinery
Economical and wear-resistance

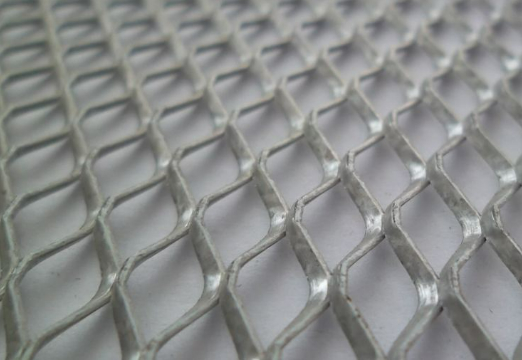

Close-up view of Expanded Metal Mesh pattern

Usage

Architectural Panels
Billboard Walkway
Catwalks & Walkway
Stairs & Balustrade
Drying Racks
Security Fences/Grilles
Window Guards & Machinery Guards
Garden Furnitures

Specifications

Mesh Thickness (mm)	Distance Short (mm)	Distance Long (mm)	Strip (mm)	Width (m)	Length (m)	Weight (kg/m²)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

Product Summary

Expanded Metal Mesh Raised Aluminium Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform ...
