Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter

Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter
Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter

Large Image :  Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter

Product Details:
Place of Origin: China
Brand Name: GNEE
Certification: ISO9001,SGS
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meter
Price: Negotiable
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Payment Terms: Negotiable
Supply Ability: 100 ton/week
Contact Now

Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter

Description
Highlight:

Mild Steel 25X5mm Bearing Bar Grating

,

Galvanized Steel Grating 6.0 Meter

,

Standard Bearing Bar Grating Supplier

Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter
Features of Steel Grating

Steel Grating is welded bearing steel bars and cross twisted bars according to required pitch space between steel bars by steel grating welding machines. It is a grid building material.

All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistant with great anti-slip performance.

Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing

Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.

Steel Grating can be called hot-dip galvanized steel grating or stainless steel gratings. Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating
  • Carbon Steel Smooth Flat Bars, Carbon Steel Serrated Bars, I-Type Steel Bars
  • Steel Twisted Square Cross Bars, Steel Round Cross Bars
  • Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars

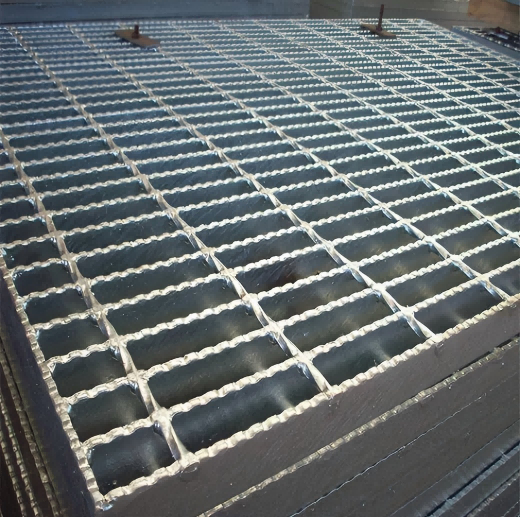

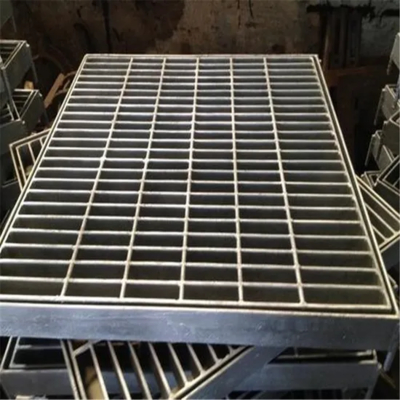

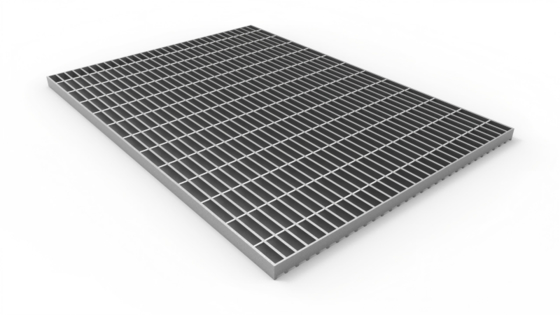

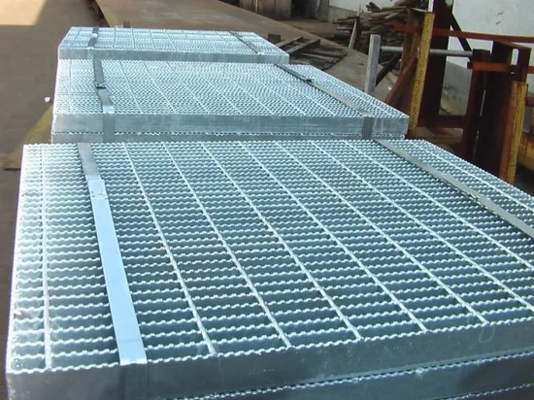

Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter 0
Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter 1
Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter 2
Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter 3
Product Specifications
1. Bearing bar: 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm
2. Bearing bar pitch: 20,25,30,35,40,50,60mm
US standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16"
3. Cross bar pitch: 38,40,50,100
4. Material: Mild Carbon Steel, SUS304
5. Surface finishing: Black, electric galvanized, hot dipped galvanized, paint
6. Standard
  • China: YB/T 4001.1-2007
  • USA: ANSI/NAAMM(MBG531-88)
  • UK: BS4592-1987
  • Australia: AS1657-1985
Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter 4
Popular Specifications of Steel Metal Grating
Item Specifications of Bearing Bar (mm) Diameter of Cross Bar (mm) Pitch of Bearing Bar (mm) Pitch of Cross Bar (mm)
25325x3620,30,40,5050,100
25425x46,820,30,40,5050,100
25525x56,820,30,40,5050,100
30430x4820,30,40,5050,100
30530x5820,30,40,5050,100
35535x5820,30,40,5050,100
40440x4820,30,40,5050,100
40540x5820,30,40,5050,100
45545x5820,30,40,5050,100
50550x5820,30,40,5050,100
60560x5830,40,50,6050,100
70570x5830,40,50,6050,100
Mild Steel 25X5mm Galvanized Bearing Bar Grating Supplier Standard 6.0 Meter 5
