Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials

Place of Origin:China

Brand Name:GNEE

Certification:ISO9001,SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

galvanized steel driveway grating

carbon steel bearing bar grating

serrated steel grid for outdoor

Product Description

Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials

Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Common Specification of Steel Grating

Material Standard	ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment	Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.

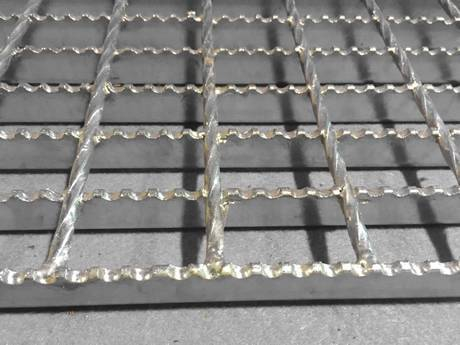

Grating Style	Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing	Bandage and Paperboard: Generally applies to neat steel plate Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength Steel Pallet: Traditional export packing

Welded Bar Grating is a one-piece metal plank grating manufactured from a single sheet with formed side channels. The perforated buttons provide a walking surface that is slip resistant in all directions. Open area of approximately 35% allow fluids, ice, and mud to easily flow through the grating.

Product Summary

Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials Heavy-Duty Galvanized Steel Driveway Grating Carbon Steel Bearing Bar Serrated Steel Grid Outdoor Building Metal Materials. To better ensure the safety of your goods, profession...
