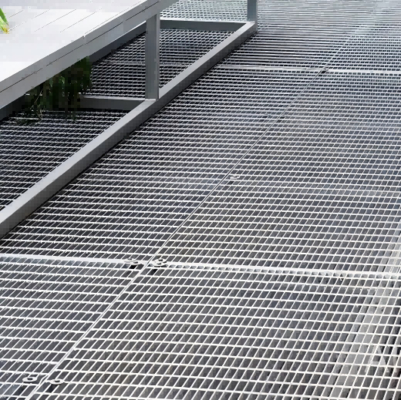

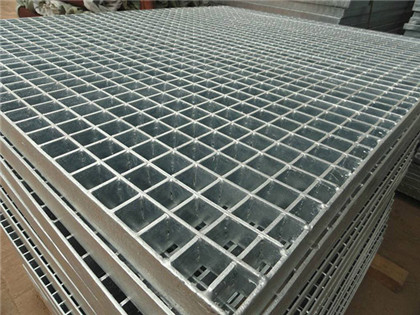

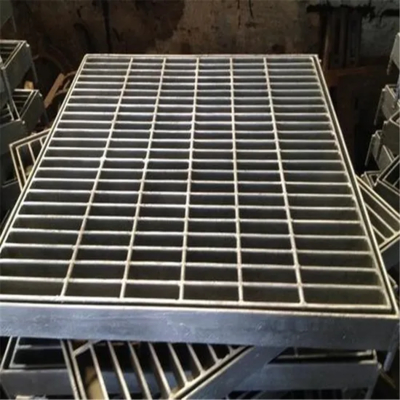

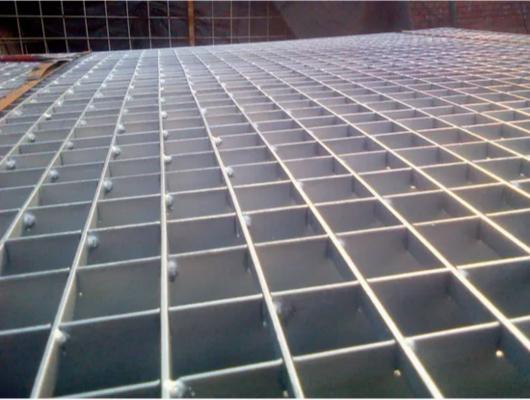

Heavy Duty Metal Bearing Bar Steel Grid Serrated Steel Mesh Hot DIP Galvanized Steel Grating
Place of Origin:China
Brand Name:GNEE
Certification:ISO9001,SGS
Minimum Order Quantity:10 square meter
Price:Negotiable
Payment Terms:Negotiable
Supply Ability:100 ton/week
Tags:
Product Details
Highlight:
heavy duty steel grating
,galvanized steel mesh grating
,serrated steel bearing bar
Product Description
Heavy Duty Metal Bearing Bar Steel Grid Serrated Steel Mesh Hot DIP Galvanized Steel Grating
Load Capacity Specifications
| Bearing Bar Size (mm) | Available For Maintenance Platform (UDL=2.5kPa) | Available For Pedestrian (UDL=3kPa) | Available For Crowded Pedestrian (UDL=4kPa) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 30mm | 40mm | 60mm | 30mm | 40mm | 60mm | 30mm | 40mm | 60mm | |
| 30x3 | 1190 | 1110 | 1000 | 1140 | 1060 | 960 | 1060 | 980 | 890 |
| 25x3 | 1410 | 1310 | 1180 | 1350 | 1250 | 1130 | 1250 | 1170 | 1050 |
| 32x3 | 1700 | 1580 | 1430 | 1620 | 1510 | 1350 | 1510 | 1400 | 1270 |
| 40x3 | 2010 | 1870 | 1690 | 1920 | 1780 | 1610 | 1780 | 1660 | 1500 |
| 20x5 | 1350 | 1260 | 1140 | 1290 | 1200 | 1090 | 1200 | 1120 | 1010 |
| 25x5 | 1600 | 1490 | 1350 | 1530 | 1420 | 1290 | 1420 | 1320 | 1200 |
| 32x5 | 1930 | 1790 | 1620 | 1840 | 1710 | 1550 | 1710 | 1590 | 1440 |
| 40x5 | 2280 | 2120 | 1920 | 2180 | 2030 | 1830 | 2030 | 1890 | 1700 |
Steel Grating Specifications
Bearing bar size: 40 X 5mm
Bearing bar pitch: 25mm
Cross bar pitch: 100mm
Grating type: Serrated bearing bar
Regular Steel Gratings Specifications
| Material | Mild steel / carbon steel / stainless steel Q235B, ASTM A36, S275JR etc. |
| Specification |
|
| Galvanization Standard | ISO 1461; ASTM A123; GB/T13912:2002 |
| Package | Seaworthy package |
| Production Standard | YT/T 4001.1-2007; BS4592-1:1995; AMSI/NAAMM(MBG531-2000); AS1657-1992 |
| MOQ | 100 pcs |
Product Summary
Heavy Duty Metal Bearing Bar Steel Grid Serrated Steel Mesh Hot DIP Galvanized Steel Grating Load Capacity Specifications Bearing Bar Size (mm) Available For Maintenance Platform (UDL=2.5kPa) Available For Pedestrian (UDL=3kPa) Available For Crowded Pedestrian (UDL=4kPa) 30mm 40mm 60mm 30mm 40mm ...
