High Quality Pressure Locked Steel Grating for Platform Press Locked Grating

Place of Origin:China
Brand Name:GNEE
Certification:ISO9001,SGS
Minimum Order Quantity:10 square meter
Price:Negotiable
Payment Terms:Negotiable
Supply Ability:100 ton/week
Product Details
Highlight:

pressure locked steel grating platform

,

steel grating for industrial platforms

,

press locked grating with warranty
Product Description
High Quality Pressure Locked Steel Grating for Platform Press Locked Grating
Steel grating is basically consist of Bearing bar and Cross bar by automatic press welding machine. Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, ditch lid, manhole cover, ladders, fences, guardrail etc.
Specifications
Bearing bar pitch Cross bar pitch Load steel size (Width × Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch Load steel size (Width × Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

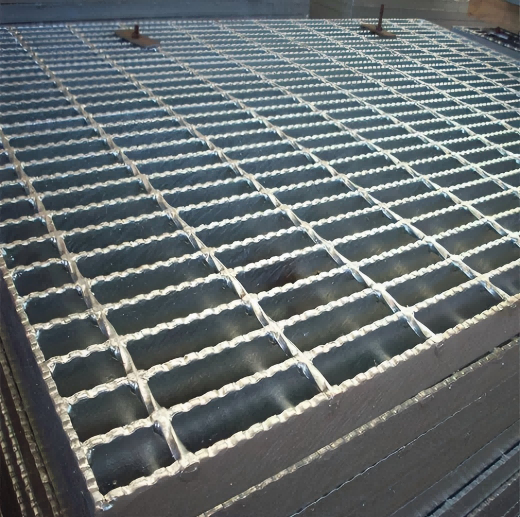

High Quality Pressure Locked Steel Grating product example
Features of Steel Bar Grating
  • High strength and light structure
  • Powerful anti-corrosion, durable and long working life
  • Beautiful appearance, bright surface
  • No dirt-rain-snow deposit, automatic cleaning, easy maintenance
  • Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
  • Easy installation

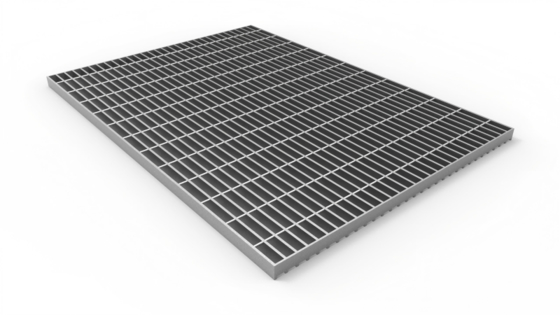

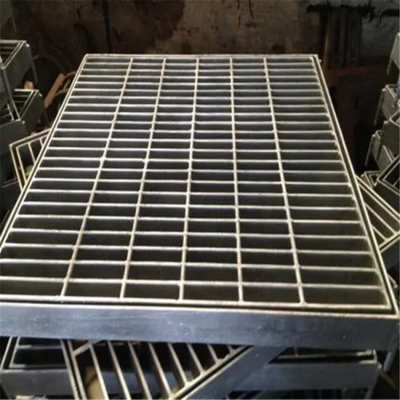

Close-up view of Pressure Locked Steel Grating Industrial application of Steel Grating
Product Summary

High Quality Pressure Locked Steel Grating for Platform Press Locked Grating Steel grating is basically consist of Bearing bar and Cross bar by automatic press welding machine. Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, ...
