Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate
Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Large Image :  Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Product Details:
Place of Origin: China
Brand Name: GNEE
Certification: ISO9001,SGS
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meter
Price: Negotiable
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Payment Terms: Negotiable
Supply Ability: 100 ton/week
Contact Now

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Description
Highlight:

welded steel grating plate

,

pressure locked serrated grating

,

metal serrated steel grating

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate
Press-locked steel grating is fully welded by flat bar (smooth flat bar, serrated flat bar, I shape flat bar). It also can be called pressure locked grating, made of low carbon steel or stainless steel. With the performance of high bearing capacity, non-slip, anti-corrosion and easy to install and remove, pressure locked grating is widely used for ceilings, platforms, floors, fence and all kinds of cover in the factories, civil and commercial buildings.
Two press-locked steel grating with different mesh sizes which people often use: 33 mm × 33 mm, 33 mm × 11 mm.
  • Light weight, high bearing capability and high strength
  • Non-slip, anti-corrosion
  • Not easy to deform
  • Beautiful appearance
  • Easy to install and remove
  • Extended the lifespan

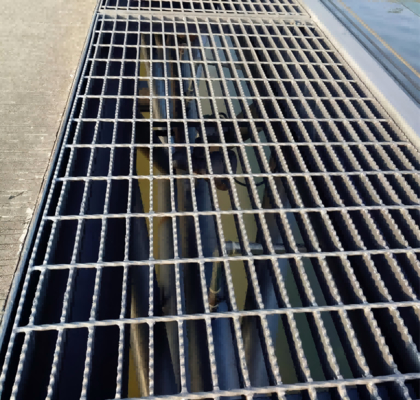

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate 0
Applications of Press-Locked Steel Grating
Press-locked steel grating is widely used for the floor, ceiling, platform, fence, shelf, decoration of outer wall, sun visor, bridge and inner and spiral staircases in such places:
  • Large-scale shopping malls
  • Construction industry
  • Factories, subway stations
  • Offshore drilling platforms
  • Ships
  • Terminals
  • Other industrial and civil construction

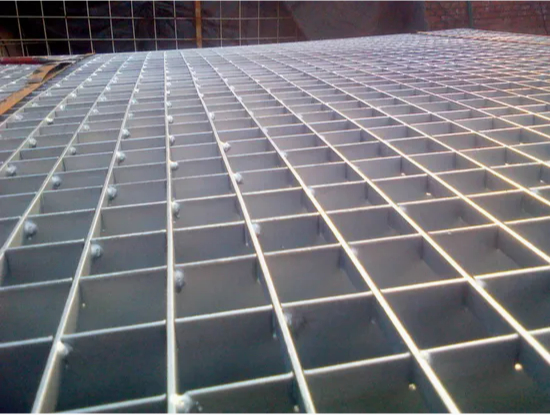

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate 1
Technical Specifications
Bearing bar pitch Cross bar pitch Load steel size (Width × Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch Load steel size (Width × Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

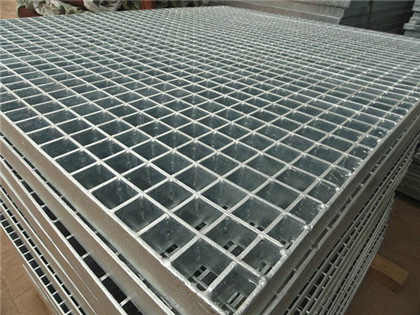

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate 2

Tag:

press lock grating,

welded bar grating,

pressure locked grating
