High Quality Steel Grating Cover for Polymer Channel Drain Grating Steel Bar Grating Trench Covers Drain Covers

Place of Origin:China
Brand Name:GNEE
Certification:SGS
Minimum Order Quantity:10 square meter
Price:Negotiable
Payment Terms:Negotiable
Supply Ability:100 ton/week
Product Details
Highlight:

steel grating drain cover

,

polymer channel drain grating

,

steel bar trench covers
Product Description
High Quality Steel Grating Cover for Polymer Channel Drain Grating Steel Bar Grating Trench Covers Drain Covers
Product Description

High Quality Steel Grating Cover

  • Cover material: stainless steel, galvanized
  • Bearing can be from A15, B125, C250, D400
  • Installing: it is easy to install. After installing, the ground only shows some small square holes.
Applications
  • Ideal solution for anchorage point load bearing for cast in place and precast concrete members
  • Railway bridges suspension platform installation
  • Railway box beam inner and outer drainage pipe installation
  • Railway integrated grounding connection
  • Subway tunnel segment channel and equipment fixing and installation
  • High-speed railway tunnel servomotor equipment precast installation
  • Railway transportation: communication, signal, electric power, overhead contact system, traction substation...the power supply cable sliding channels (embedded groove)
  • Curtain wall keel fixing, instead of embedded parts
  • All steel-structure project of embedded parts

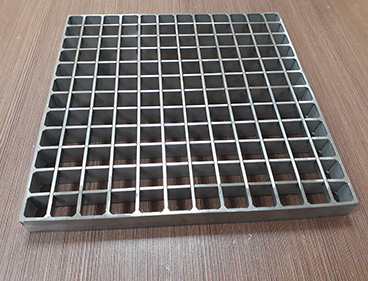

High Quality Steel Grating Cover installation example
Specifications
Code Internal Dimension L×W×D (mm) Outside Dimension L×W×H (mm)
100-Z01-C1000×100×571000×130×75
100-Z02-C1000×100×1101000×130×130
100-Z03-C1000×100×1701000×130×190
100-Z04-C1000×100×2301000×130×255
100-Z02-D1000×100×1101000×130×150
100-Z03-D1000×100×1701000×130×210
100-Z04-D1000×100×2301000×130×270
150-Z01-C1000×150×1201000×190×140
150-Z02-C1000×150×1801000×190×200
150-Z03-C1000×150×2401000×190×260
150-Z01-D1000×150×1401000×198×160
150-Z02-D1000×150×2001000×198×220
150-Z03-D1000×150×2601000×198×280
150-Z01-E1000×150×1401000×198×160
150-Z02-E1000×150×2001000×198×220
150-Z03-E1000×150×2601000×198×280
200-Z01-D1000×200×2001000×240×225
200-Z02-D1000×200×2601000×240×285
200-Z01-E1000×200×2001000×248×225
200-Z03-E1000×200×2601000×248×285
250-Z02-D1000×250×3001000×310×335
250-Z02-E1000×250×3001000×310×335
300-Z01-D1000×305×2501000×365×280
300-Z01-E1000×305×2501000×365×280
300-Z02-D1000×305×3101000×365×345

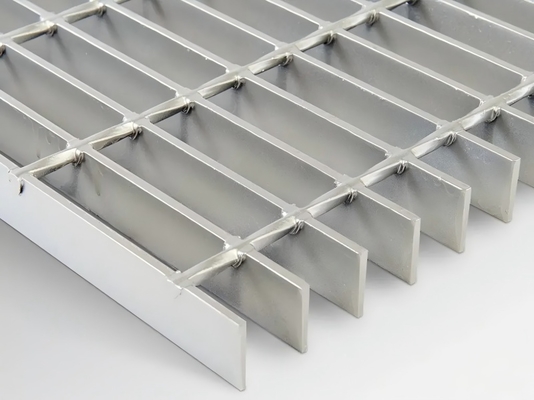

High Quality Steel Grating Cover product view
Product Summary

High Quality Steel Grating Cover for Polymer Channel Drain Grating Steel Bar Grating Trench Covers Drain Covers Product Description High Quality Steel Grating Cover Cover material: stainless steel, galvanized Bearing can be from A15, B125, C250, D400 Installing: it is easy to install. After ...
