Customized Stainless Steel Metal Product Drain Grate Cover Grating Trench Cover Drain Flooring Cover for Industrial Durable Grate Flooring Solution

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

stainless steel drain grate cover

industrial trench grating cover

durable metal flooring drain cover

Product Description

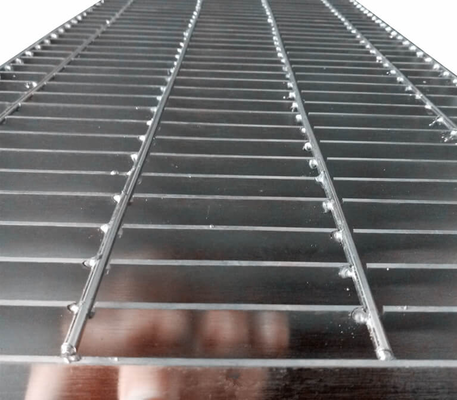

Customized Stainless Steel Metal Product Drain Grate Cover Grating Trench Cover Drain Flooring Cover for Industrial Durable Grate Flooring Solution

Galvanized steel Grating is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Our galvanized coating process provides for years of corrosion resistance in acidic and high moisture environments.

Galvanized steel Expanded Metal is a sheet product that has been slit and stretched to diamond shaped openings. Galvanized expanded metal offers savings in weight and allows free passage of light, liquid, sound and air while providing corrosion resistance in harsh environments.

Types of Steel Grating

Customized Stainless Steel Metal Product Drain Grate Cover Grating

Plain Type: One of the most widely used grating. Available for flooring, sidewalk, drainage pit cover, stair tread, etc.
Serrated Type: Better non-skid property & safety comparing to plain grating.
I Bar Type: Lighter, more economical and practical comparing to plain grating.

Product Specifications

Material	1. Carbon Steel Q235 2. Stainless Steel 304 / 316
Type	Press locked / Flat bar / Serrated bar / I Bar
Bearing Bar Size	20 x 3 to 100 x 9; the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc
Bearing Bar Pitch	12.5 to 100 mm etc, 30, 40, 60mm are recommended, America standard is available
Cross Bar Pitch	from 18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available
Specification	Size of bearing flat steel: 25x3mm / the center space: 30mm, 40mm, 50mm, 100mm Size of horizontal pole: 10x2mm / the center space: 50mm, 100mm
Surface Treatment	Untreated / Painting / Hot Dip Galvanizing
Steel Standard	China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard	China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard	China YB/T4001-1998 America ANSI/NAAMM (MBG531-88) Britain BS4592-1987 Australia AS1657-1992

Product Summary

Customized Stainless Steel Metal Product Drain Grate Cover Grating Trench Cover Drain Flooring Cover for Industrial Durable Grate Flooring Solution Galvanized steel Grating is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle ...
