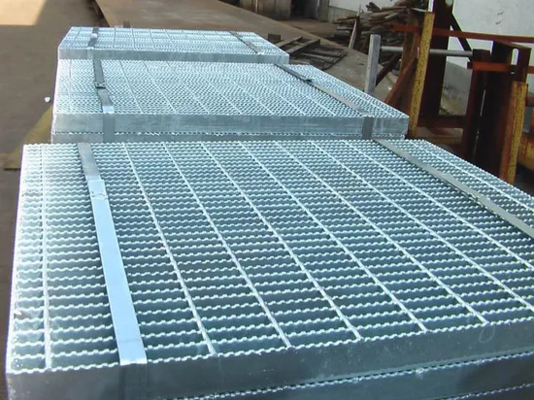

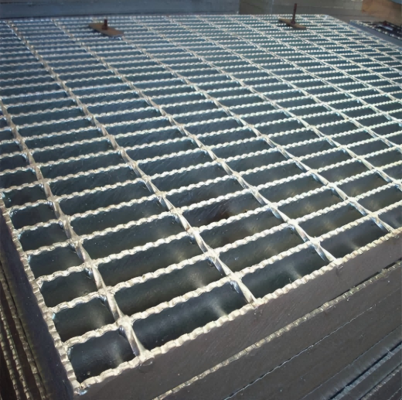

Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications

Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications
Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications

Large Image :  Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications

Product Details:
Place of Origin: China
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Payment Terms: Negotiable
Supply Ability: 100 ton/week
Contact Now

Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications

Description
Highlight:

Type Dpl press-locked steel grating

,

Type Dt dovetail steel grating

,

architectural steel grating with warranty

Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings

Ideal for Architectural and Ornamental Applications

Product Parameters of Dovetail Pressure Locked Steel Bar Grating

Technical parameters of our dovetail press-locked steel bar gratings:

Material Types Premium carbon steel, and stainless steel
Finish In hot dip galvanized finish or spray coated finish
Bearing Bar Type Plain top type or serrated type
Bearing Bar Depth (mm) 20, 25, 30, 32, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160 and 170
Bearing Bar Thickness (mm) 2.0, 2.5, 3.0, 3.5, 4.0, 4.5 and 5.0
Standard Sizes of Bearing Bars

2mm thick: 20/2, 25/2, 30/2, 35/2, 40/2, 45/2 and 50/2

3mm thick: 20/3, 25/3, 30/3, 35/3, 40/3, 45/3, 50/3, 60/3, 70/3, 80/3, 90/3 and 100/3

4mm thick: 25/4, 30/4, 35/4, 40/4, 45/4, 50/4, 60/4, 70/4, 80/4, 90/4 and 100/4

5mm thick: 25/5, 30/5, 35/5, 40/5, 45/5, 50/5, 60/5, 70/5, 80/5, 90/5, 100/5, 110/5, 120/5, 130/5, 140/5, 150/5, 160/5 and 170/5
Mesh Size (mm) 20*20, 25*25, 30*30, 35*35, 40*40 and 50*50
Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications 0
1. In addition to Standard Sizes of Bearing Bars, custom sizes are also available from Tech-Shine.
2. Our Mesh Size herein refers to the size of clear openings. If you need holes pitch, please specify.
3. In addition to square openings, rectangular openings are also available from Tech-Shine Grating.
Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications 1
Production Steps

Manufacturing process for hot dip galvanized machine press welded steel gratings:

  1. Materials Preparation: Ready bearing bars and cross bars properly for next step.
  2. Bearing Bars Placement: Place bearing bars into a work-holding device that is suitable for holding bearing bars in place.
  3. Pressure Welding: Cold pressing of cross bars into bearing bars at high pressure and resistance welding of the bar materials under great pressure at high temperature.
  4. Flush Trimming for Edges: Remove the excessive portion of cross bars that extends beyond the edges of the grating panel.
  5. Cutting to Size and Shape: Cut in strict accordance with the desirable dimensions and shapes provided by the buyer's working drawings.
  6. Banding for Open Ends: Welding process that closes open ends of bearing bars, and the line of cutouts if any, of the grating panel.
  7. Hot Dip Galvanizing: Finish the grating panels using the hot dip galvanizing process with zinc coating thickness of usually 65 μm or above.
Type Dpl or Type Dt Dovetail Press-Locked Steel Bar Gratings Ideal for Architectural and Ornamental Applications 2
