Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Customer Reviews
My grate came today and it fit perfectly. Thank you. Let me know if there is anywhere that I can leave positive feedback about your company!

—— Andrew Mullen

I'm Online Chat Now

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

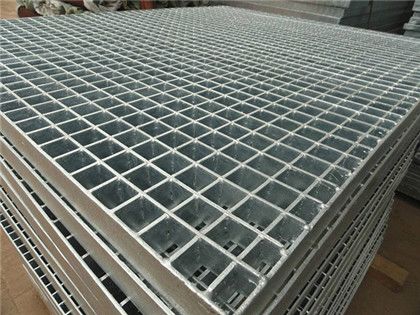

Large Image :  Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Product Details:
Place of Origin: China
Brand Name: GNEE
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meter
Price: Negotiable
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 5-9 working days
Payment Terms: Negotiable
Supply Ability: 100 ton/week

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Description
Highlight:

rust-proof galvanized steel grating

,

serrated steel grating platform

,

galvanized steel grating with warranty

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Serrated When the gratings are used in particularly wet environments or in places where extra non-slip properties are required, serrated bars will be an advantage. The serrated process involves carving a pattern in the bars to be serrated. This could be in either the control or filler bars or in both control and filler bars and bearing bars, depending on whether the grating needs serrated in one or both directions. Serration is available in two patterns:
  • Small Serration: Small serration is the most commonly used serrated form, which is used for industrial walkway and staircase gratings etc. and for heavy duty ramp gratings.
  • Large Serration: This type of serrated is very easy to clean and therefore primarily used in industrial kitchens, canteens and in other places with high hygiene requirements and requirements of non-slip properties. Serrated bearing bars and control and filler bars.

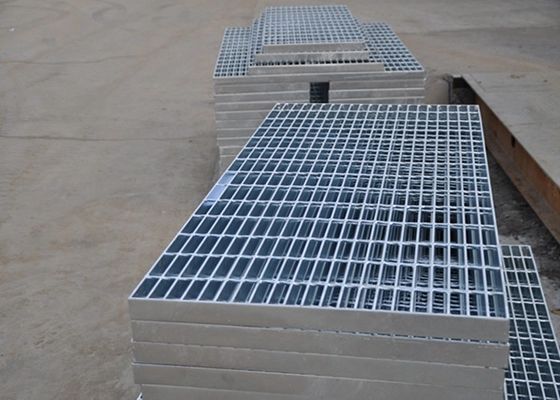

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 0
Serrated steel grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. In addition to its high strength and light weight, this type of grating also has non-slip characteristics, no sharp edges and serrations are rolled on, to meet strict health and safety requirements. Hot rolled serrations help stop lacerations if someone falls on the grating.
Technical Specifications
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar

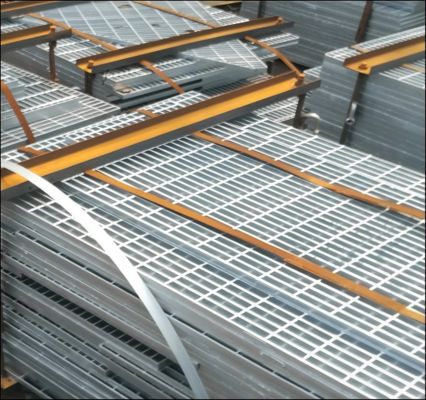

Packing (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing.

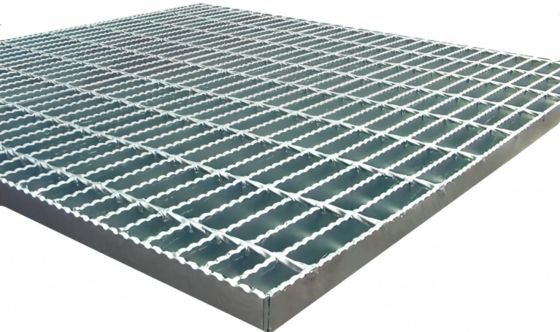

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 1
Enhanced Safety Features
Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations. The excellent self-cleaning characteristics of plain surface grating make it suitable for the majority of applications.
In the presence of fluids or materials that could cause the top surface of the grating to become wet or slippery, specification of the optional serrated surface should be considered. When serrated grating is specified, the bearing bar depth must be 1/4" greater, to provide the equivalent strength of non-serrated gratings.
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 2
