19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating

Brand Name:GNEE

Certification:SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

steel bar grating for walkways

metal grate platform grating

1 1/4′ ′ steel grating

Product Description

19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating

Uses & Applications

Bridge Flooring
Bridge Sidewalks
Catwalks
Concrete Reinforcement
Dipping Trays
Drainage Covers
Fencing
Fire Escapes
Flooring
Fork Lift Traffic
Freight Cars
Ladder Treads
Landing Mats
Light Guards
Loading Ramps
Machine and Motor Bases
Machine Bases
Machinery Safety Guards
Machinery Support
Material Screens
Mezzanine Floors
Motor Bases
Ornamental Grills
Overhead Signs
Paint Booths
Partitions
Platforms
Racks & Shelving
Ramps
Running Boards
Security Screens
Snow Fences
Solar Screens
Stage Flooring
Stairs
Strainers
Tree & Pole Guards
Trench Covers
Trenches
Truck Beds
Truck Grills
Ventilating Screens
Walkways
Wash Racks
Window Guards

G325 steel grating width and thickness of bearing bar 32*5mm, 1 1/4''*3/16''

30 bearing bar spacing

100 cross bar spacing

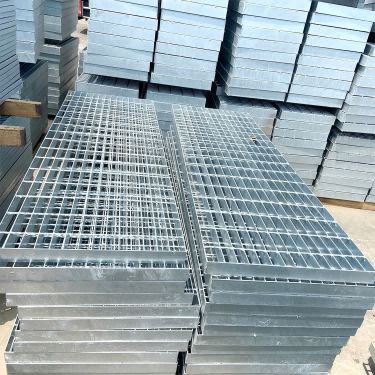

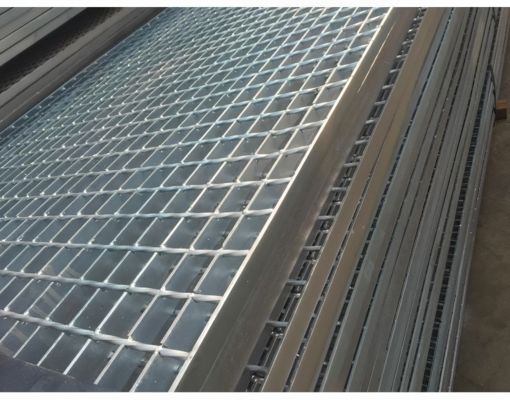

Close-up view of galvanized steel bar grating showing bearing bars and cross bars

Common Specifications

Material Standard	ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment	Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style	Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar

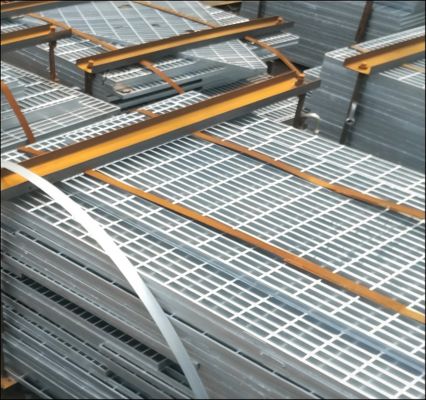

Packing	(1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing.

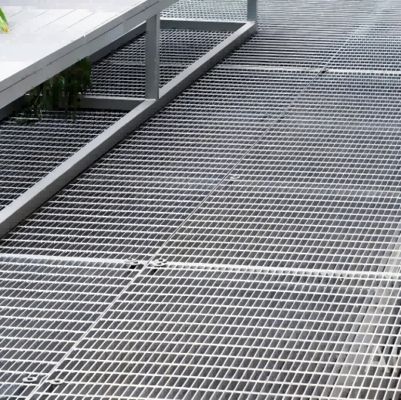

Industrial steel grating installed as a walkway surface

Steel grating used in a commercial platform application

Product Summary

19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating Uses & Applications Bridge Flooring Bridge Sidewalks Catwalks Concrete Reinforcement Dipping Trays Drainage Covers Fencing Fire Escapes Flooring Fork Lift Traffic Freight Cars Ladder Treads Landing Mats Light Guards ...
