Platform Stainless Steel Grating Pressure Welded Grating Plate

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Minimum Order Quantity:10 square meter

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

stainless steel pressure welded grating

platform steel grating plate

pressure welded steel grating

Product Description

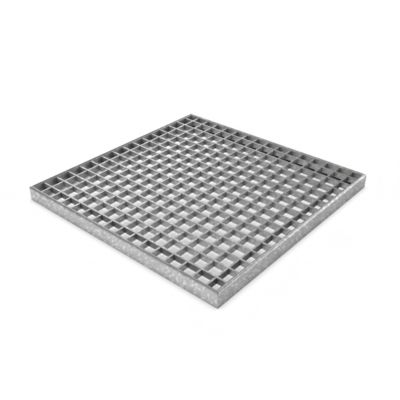

Platform Stainless Steel Grating Pressure Welded Grating Plate

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment.

Mild carbon steel provides an economical, high strength for use in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

Platform Stainless Steel Grating Pressure Welded Grating Plate

Description

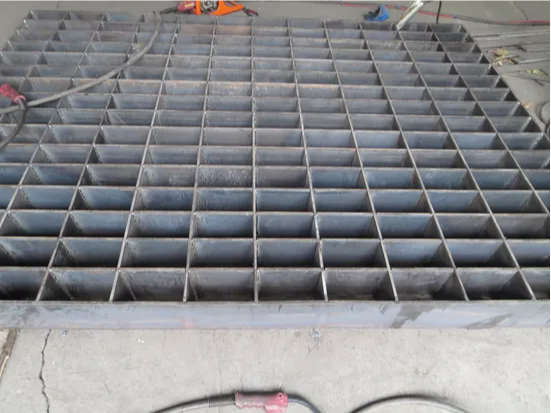

Structure: Welding with flat steel and cross/round bars with certain distances.
Features: High strength, light structure, high bearing.
Surface: The hot dipped zinc coating gives the product excellent anti-corrosion

Steel Grating Specification

Load Bearing Flat Bar size	Thickness≥3mm, depth ≥19mm
	19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5.....40X6, 40X8, 40X10,....90X6....
Pitch of Load bearding flat bars(mm)	12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80...
Pitch of cross bars(mm)	38.1, 50, 50.8, 70, 75, 80, 99,100, 101.6, 102...

Steel Grating Standard

Country	Steel grating standard	Steel material standard	Hot galvanizing standard
China	YB/T4001-1998	GB 700-88	GB/T13912-2002
USA	ANSI/NAAMM(MBG531-88)	ASTM (A36)	ASTM(A123)
England	BS4592-1987	BS4360 ( 43A)	BS729
Australia	AS1657-1992	AS3679	AS1650

Steel Grating More detailed information

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'',etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Steel Grating Type

1.Plain type:
One of the most wiely used gratings, available for flooring, sidewalk, dranage pit cover, stair tread, etc

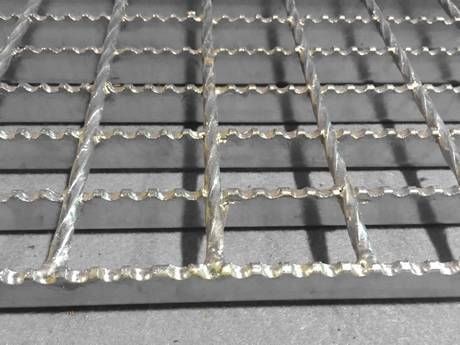

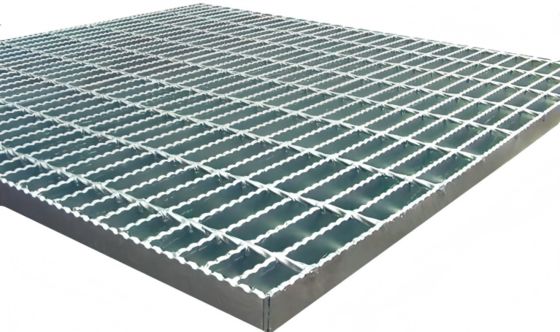

2.Serrated type:
Better Non-skid property & safety compared with plain grating

3.I-shape type
Lighter, more economical and practical comparing with plain grating

Product Summary

Platform Stainless Steel Grating Pressure Welded Grating Plate Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment. Mild carbon steel provides an economical, ...
