TF China Products/Suppliers. 383825mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

38x38x25mm FRP plastic flooring grating

fiberglass reinforced plastic floor grating

FRP grating with fiberglass reinforcement

Product Description

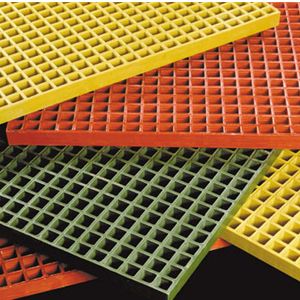

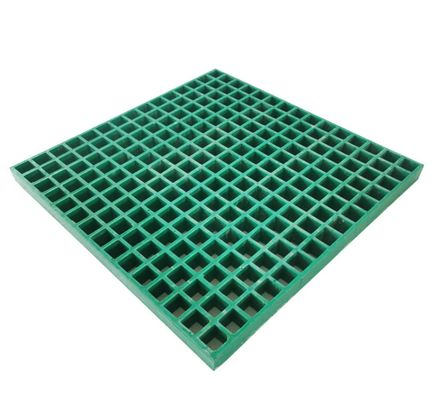

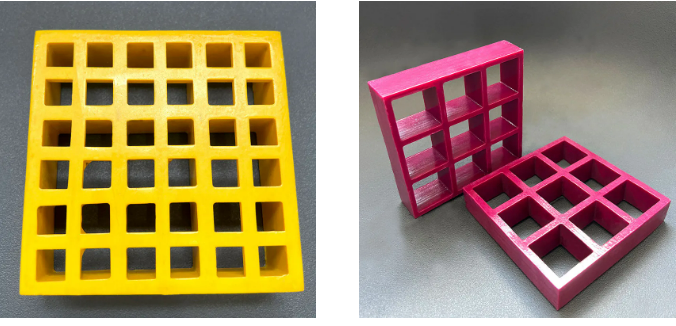

38×38×25mm Plastic Flooring Fiberglass FRP Grating

FRP Grating (Fiberglass Reinforced Plastic Grating) is a structural grid made from fiberglass-reinforced plastic composite. It's designed for use in applications that require corrosion resistance, high strength, and low maintenance.

Key Features

Corrosion Resistance: Doesn't rust or corrode, ideal for harsh environments exposed to chemicals or moisture
High Strength-to-Weight Ratio: Lightweight yet maintains high tensile and flexural strength
Non-Slip Surface: Textured, grit surface improves traction in wet or oily conditions
Low Maintenance: Doesn't corrode or warp, requiring less upkeep than metal grating
Fire Retardant: Manufactured with fire-resistant properties to meet industrial safety standards
UV Resistance: Special coatings protect against UV degradation for outdoor applications
Electrical & Thermal Insulation: Non-conductive material for safer electrical environments

Applications

Industrial Platforms: Walkways, platforms, and flooring in chemical plants, power stations, and wastewater facilities
Marine Environments: Docks, ship decks, and oil rigs due to saltwater corrosion resistance
Public Access Areas: Parks, pedestrian bridges, and access ramps for slip resistance and low maintenance

Types of FRP Grating

Molded FRP Grating: One-piece interwoven construction for high impact resistance and durability
Pultruded FRP Grating: Assembled load-bearing bars and cross-rods for superior load-bearing capacity

FRP Grating Specifications

Thickness (mm)	Mesh Size (mm)	Bar thickness (up/under)	Hole Size (mm)	Panel Size (mm)	Weight (kg/m²)	Weight (kg/panel)	Load (kg/m²)
25	40×40	5.5/4.5	34×34	1220×3660,1000×4040	11	49.11/44.44	150
	38×38	7.0/5.0	31×31	1220×3660,100×4040	12.5	55.82	150
	20×20/40×40	5.8/4.5	14.2×14.2	1247×4047	14.5	73.18	150
30	40×40	6.0/4.5	34×34	1220×3660,1000×4040	14	62.51	250
	38×38	7.0/5.0	31×31	1220×3660	15	66.98	300
38	40×40	6.0/4.5	34×34	1220×3660,1000×4040 1220×4920	17.5	78.14/70.7/105.14	1000
	38×38	7.0/5.0	31×31	1220×3660,100×4040	19.5	87.07/78.78	1200
40	40×40	7.0/5.0	33×33	1207×3007,1007×3007	28	101.62/84.79	1500
50	50×50	7.0/5.0	43×43	1220×3660,100×4040	23	102.7/92.92	1800
	38×38	7.0/5.0	31×31	1220×3600	26	116.1	3000
Cover Plate	3mm				8
	8mm				10

Product Summary

38×38×25mm Plastic Flooring Fiberglass FRP Grating FRP Grating (Fiberglass Reinforced Plastic Grating) is a structural grid made from fiberglass-reinforced plastic composite. It's designed for use in applications that require corrosion resistance, high strength, and low maintenance. Key Features ...
