Metal Plank Grating Stair Treads/Grating Treads/Galvanized Steel Treads /Powder-Coated Steel Treads/Wide Range of Stair Treads

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

galvanized steel stair treads

powder-coated steel grating treads

metal plank grating stair treads

Product Description

Metal Plank Grating Stair Treads

Galvanized Steel Treads / Powder-Coated Steel Treads / Wide Range of Stair Treads

GNEE Steel specializes in the production of steel grating, steel grate and frame, trench grate, kerb grate, storm pits cover, access cover grate, manhole covers, side entry grate, steel stair, steel ball stanchion, steel railing, aluminium grating and other light steel structure products. The company has a complete computer-aided design system that can provide users with perfect steel grating layout design. The processing technology is superb and the product quality is excellent.

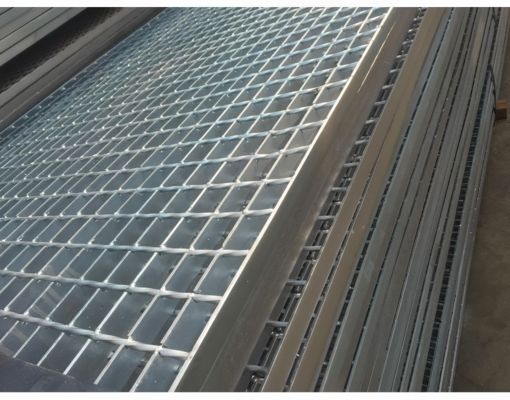

Metal Plank Grating Stair Treads product example

Stair treads steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products. It's usually used in industrial construction projects. We have 4 types to choose from: welded fixing stair treads, clip fixing galvanized stair treads, and checker plate stair treads.

Product Specifications

Name	Stainless Steel Grating
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS

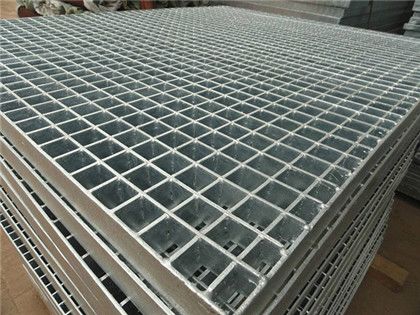

Close-up view of Metal Plank Grating Stair Treads

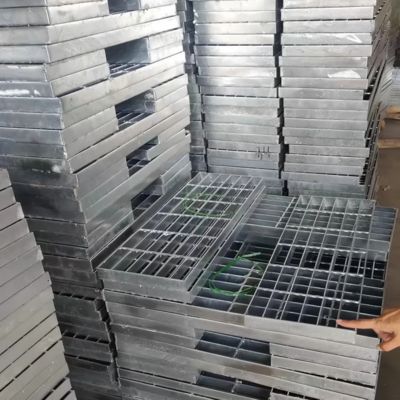

Metal Plank Grating Stair Treads installation example

Industrial application of Grating Stair Treads

Product Summary

Metal Plank Grating Stair Treads Galvanized Steel Treads / Powder-Coated Steel Treads / Wide Range of Stair Treads GNEE Steel specializes in the production of steel grating, steel grate and frame, trench grate, kerb grate, storm pits cover, access cover grate, manhole covers, side entry grate, steel ...
