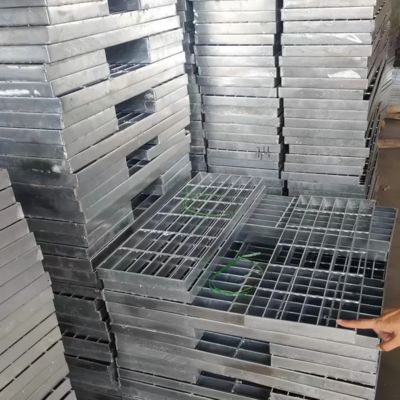

Durable Galvanized Steel Stair Tread for Industrial Platforms
Place of Origin:China
Brand Name:GNEE
Certification:SGS
Price:Negotiable
Payment Terms:Negotiable
Supply Ability:100 ton/week
Tags:
Product Details
Highlight:
galvanized steel stair tread
,industrial platform stair tread
,durable steel stair tread
Product Description
Durable Galvanized Steel Stair Tread for Industrial Platforms

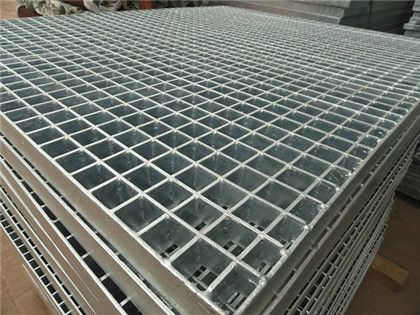

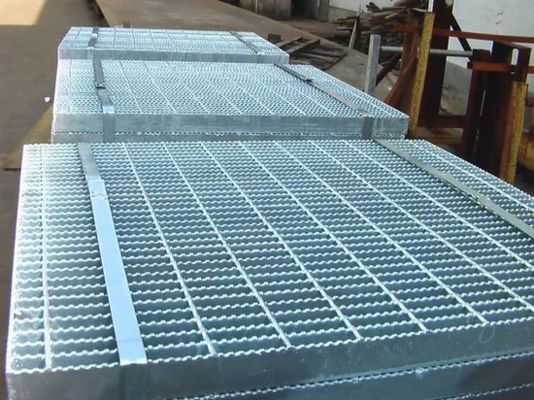

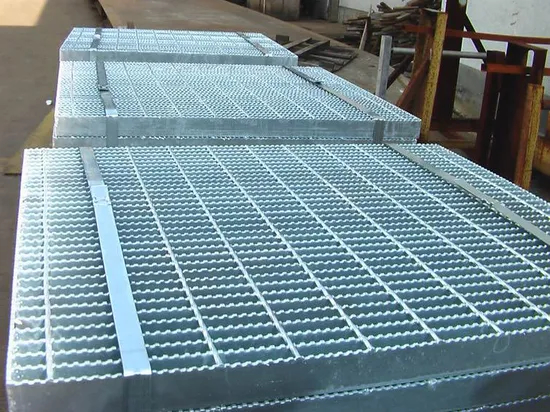

HOT DIP GALVANIZED STEEL GRATING
Galvanized steel grating is steel bar according to a certain distance and cross bar arranged and welded into the middle of a square latice with an iron and steel products. It is mainly used on the industrial platform, walking flooring, drainage cover, well cover, oil platform, stair tread step etc.
Galvanized steel grating is steel bar according to a certain distance and cross bar arranged and welded into the middle of a square latice with an iron and steel products. It is mainly used on the industrial platform, walking flooring, drainage cover, well cover, oil platform, stair tread step etc.
Features
- High strength and light structure
- Powerful anti-corrosion, durable and long working life
- Beautiful appearance, bright surface
- No dirt-rain-snow deposit, automatic cleaning, easy maintenance
- Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
- Easy installation and disassembly
Technical Specifications
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
Untreated, Painting or Hot DIP Galvanizing
5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
| No. | Item | Description |
|---|---|---|
| 1 | bearing bar | 20 x 5, 25 x 3, 30 x 3, 30 x 5, 32 x 3, 32 x 5, etc. |
| 2 | bearing bar pitch | 15mm, 25mm, 30mm, 40mm, 50mm, or as customers' requirement |
| 3 | cross bar | 5 x 5, 6 x 6 (twisted bar or round bar) |
| 4 | cross bar pitch | 40mm, 50mm, 60mm, 100mm, or as customers' requirement |
| 5 | flat bar type | plain, serrated (tooth-like), I bar (I-section), serrated I-shape bar |
| 6 | surface treatment | untreated, hot dip galvanized, powder coated, and electro polished, etc. |
| 7 | steel grating standards | China: YB/T4001.1-2007; US: ANSI/NAAMM(MBG531-88); UK: BS4592-1987 |
| 8 | steel product standard | China: GB700-88; US: ASTM(A36); UK: 43A |
| 9 | hot galvanized standard | China: GB/T13912; US: ASTM(A123); UK: BS729 |
Product Summary
Durable Galvanized Steel Stair Tread for Industrial Platforms HOT DIP GALVANIZED STEEL GRATING Galvanized steel grating is steel bar according to a certain distance and cross bar arranged and welded into the middle of a square latice with an iron and steel products. It is mainly used on the ...
