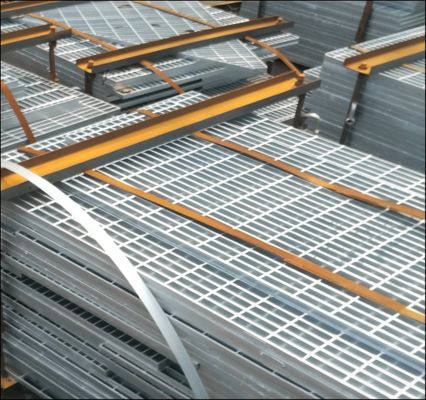

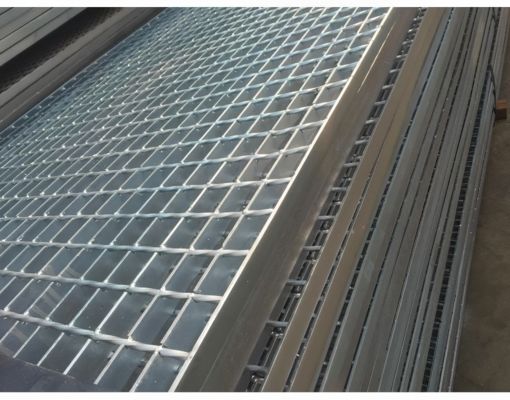

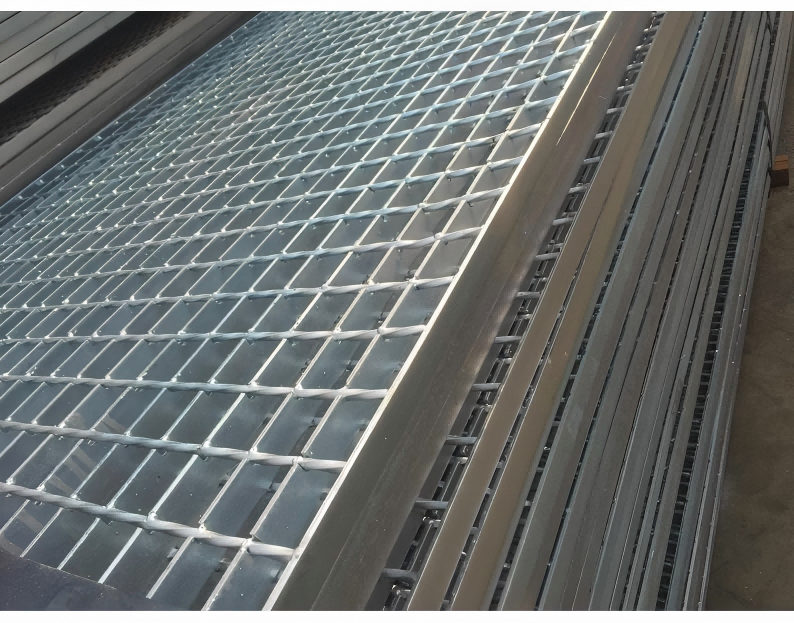

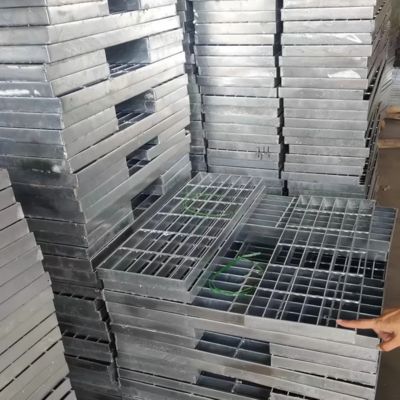

Industrial Galvanized Steel Grating Stair Treads with Non-Slip Stair Nosing
Place of Origin:China
Brand Name:GNEE
Certification:SGS
Price:Negotiable
Payment Terms:Negotiable
Supply Ability:100 ton/week
Tags:
Product Details
Highlight:
galvanized steel stair treads with nosing
,industrial non-slip stair treads
,steel grating stair treads with warranty
Product Description
Industrial Galvanized Steel Grating Stair Treads with Non-Slip Stair Nosing
Specification of Steel Grating
| No. | Item | Description |
|---|---|---|
| 1 | Bearing bar | 20 x 5, 25 x 3, 30 x 3, 30 x 5, 32 x 3, 32 x 5, etc. |
| 2 | Bearing bar pitch | 15mm, 25mm, 30mm, 40mm, 50mm, or as customers' requirement |
| 3 | Cross bar | 5 x 5, 6 x 6 (twisted bar or round bar) |
| 4 | Cross bar pitch | 40mm, 50mm, 60mm, 100mm, or as customers' requirement |
| 5 | Flat bar type | Plain, serrated (tooth-like), I bar (I-section), serrated I-shape bar |
| 6 | Surface treatment | Untreated, hot dip galvanized, powder coated, and electro polished, etc. |
| 7 | Steel grating standards | China: YB/T4001.1-2007; US: ANSI/NAAMM(MBG531-88); UK: BS4592-1987 |
| 8 | Steel product standard | China: GB700-88; US: ASTM(A36); UK: 43A |
| 9 | Hot galvanized standard | China: GB/T13912; US: ASTM(A123); UK: BS729 |
Main Features of Steel Tread
- Grating can load withstand repeat load impacts and have outstanding durability
- Because of big opening area, gratings have good drainage function, and can be kept hygienic
- Easy to install and to clean
- Having corrosion resistance after galvanizing, so it is economical
- With a wide variety and types, can select according to different occasions
Additional Features
- High strength and light structure
- Powerful anti-corrosion, durable and long working life
- Beautiful appearance, bright surface
- No dirt-rain-snow deposit, automatic cleaning, easy maintenance
- Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
- Easy installation and disassembly
Product Summary
Industrial Galvanized Steel Grating Stair Treads with Non-Slip Stair Nosing Specification of Steel Grating No. Item Description 1 Bearing bar 20 x 5, 25 x 3, 30 x 3, 30 x 5, 32 x 3, 32 x 5, etc. 2 Bearing bar pitch 15mm, 25mm, 30mm, 40mm, 50mm, or as customers' requirement 3 Cross bar 5 x 5, 6 x 6 ...
