Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

rust-proof galvanized steel grating

serrated steel grating platform

galvanized steel grating with warranty

Product Description

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, which can be applied to control bars, filler bars, or both, depending on directional requirements.

Serration Types

Small Serration: The most common type, used for industrial walkways, staircases, and heavy-duty ramp gratings.
Large Serration: Easy to clean, primarily used in industrial kitchens, canteens, and other high-hygiene areas requiring non-slip properties.

Close-up of serrated steel grating surface showing anti-slip pattern

Serrated steel grating is the most popular grating type due to its strength, cost-efficient production, and ease of installation. It offers high strength-to-weight ratio, non-slip characteristics, and rolled-on serrations that meet strict health and safety requirements. The hot-rolled serrations help prevent lacerations in case of falls.

Common Specifications

Specification	Details
Material Standard	ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10...100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4",1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc
Surface Treatment	Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement
Grating Style	Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing	Bandage and Paperboard: For neat steel plate Screw Locking Method: Uses 4 screw rods through aperture for high strength Steel Pallet: Traditional export packing
Payment Term	T/T, L/C, Western Union, Credit Card, Trade Assurance

Note: Special Material, High Zinc Coating and New Style can be Customized.

Product Images

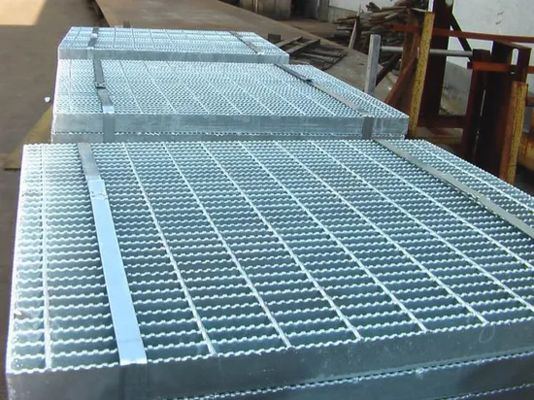

Galvanized steel grating platform installation example

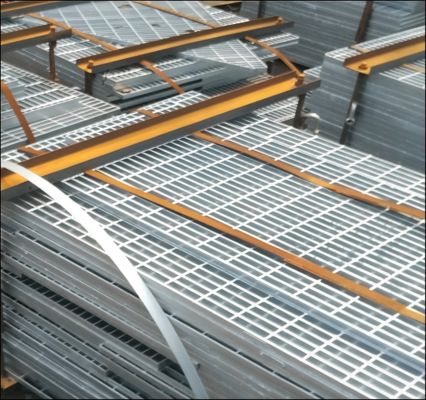

Industrial application of serrated steel grating

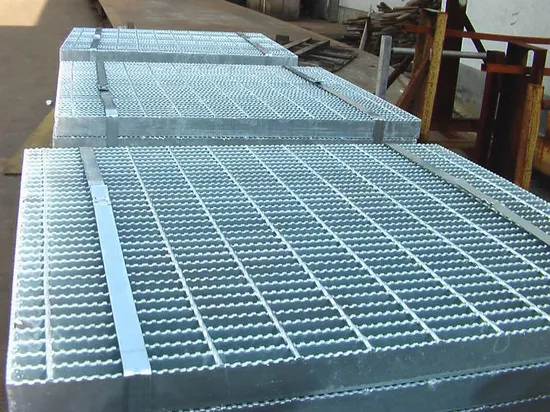

Close-up view of serrated steel grating texture

Product Summary

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, which can be applied to control bars, filler bars, or both, ...
