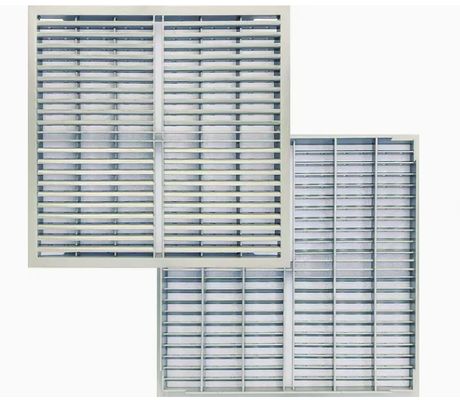

Galvanised Serrated Steel Grating for Platform Steel Floor Projects
Place of Origin:China
Brand Name:GNEE
Certification:SGS
Price:Negotiable
Payment Terms:Negotiable
Supply Ability:100 ton/week
Tags:
Product Details
Highlight:
galvanised serrated steel grating
,platform steel floor grating
,serrated steel grating for platforms
Product Description

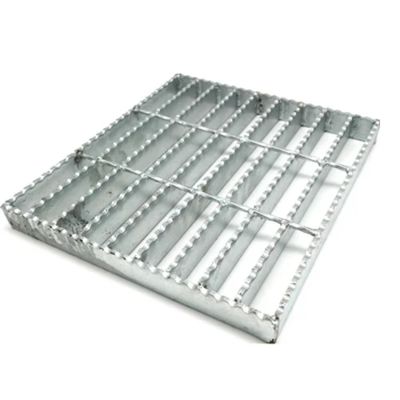

Galvanised Serrated Steel Grating for Platform Steel Floor Projects
Product Specifications
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot dip galvanizing
5) Steel grating standards:
- China: YB/T4001-1998
- USA: ANSI/NAAMM (MBG531-88)
- UK: BS4592-1987
- Australia: AS1657-1985
- Japan: JJS
Quick Guide to Choosing the Right Flooring
| Load 3kPa/Deflection 5mm | Load 4kPa/Deflection 5mm | Load 5kPa/Deflection5mm | |||
|---|---|---|---|---|---|
|
Span(mm) 1500 1800 2100 2400 2800 |
Steel Grating Type G255/30/100 G325/30/100 G405/30/100 G505/30/100 G655/30/100 |
Span(mm) 1400 1710 1780 2030 2350 2400 |
Steel Grating Type G255/30/100 G325/30/100 G403/30/100 G405/30/100 G505/30/100 G655/30/100 |
Span(mm) 1200 1500 1800 2100 2400 2800 |
Steel Grating Type G255/40/100 G325/40/100 G405/30/100 G505/30/100 G655/30/100 G756/30/100 |
