Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs
Place of Origin:China
Brand Name:GNEE
Certification:SGS
Price:Negotiable
Payment Terms:Negotiable
Tags:
Product Details
Highlight:
stainless steel grating for stairs
,heavy duty steel grating inspection
,sturdy stainless steel stair grating
Product Description

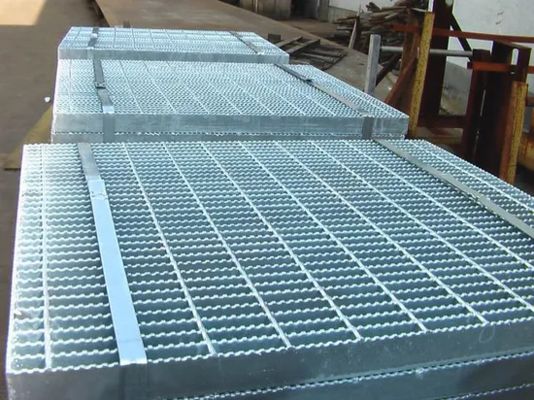

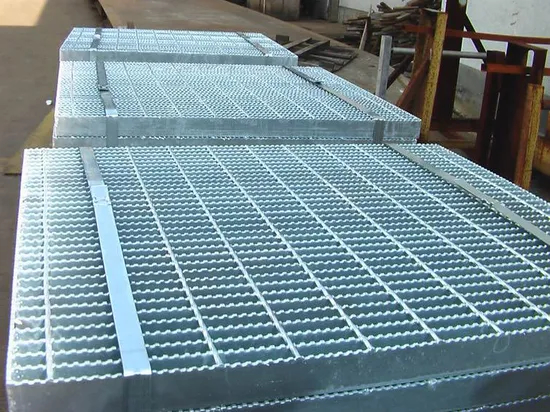

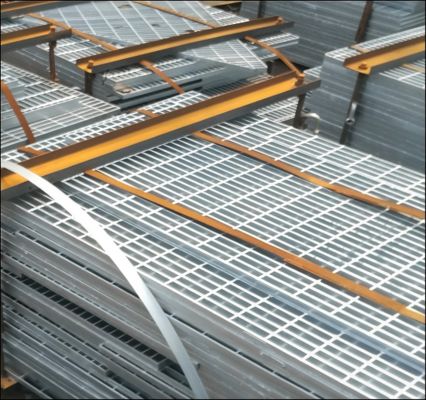

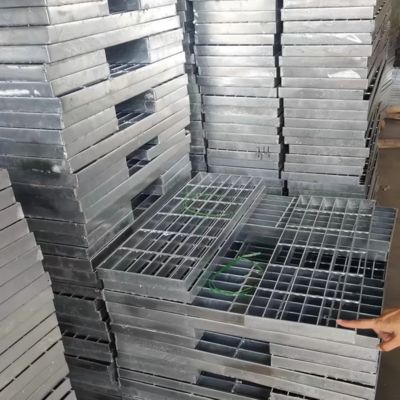

Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs
Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.
Material Specifications
| Material | Carbon Steel, Stainless Steel, Aluminum |
|---|---|
| Surface treatment | Hot dipped galvanized, Spray painting, Polished and powder coated |
| Bearing bar type | Plain(Flat) bar, Serrated bar, I-bar, etc. |
Common Specifications
| Bearing bar pitch (mm) | Cross bar pitch (mm) | Bearing bar size (WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch) |
|---|---|---|
| 30 | 100 | WSG_203/253/323/403/205/325/405/455/505/555_30_100 |
| 30 | 50 | WSG_203/253/323/403/205/325/405/455/505/555_30_50 |
| 40 | 100 | WSG_203/253/323/403/205/325/405/455/505/555_40_100 |
| 40 | 50 | WSG_203/253/323/403/205/325/405/455/505/555_40_50 |
| 60 | 50 | WSG_203/253/323/403/205/325/405/455/505/555_60_50 |
Customization Options
- Bearing bar depth
- Bearing bar thickness
- Bearing bar pitch
- Cross bar pitch
- Span and Width (mesh size)
Daily Applications
flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
Product Summary
Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar ...
