Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

heavy-duty steel grating galvanized

customizable anti-corrosion steel grating

non-slip breathable steel grating

Product Description

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type

Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.

Heavy-duty steel grating with anti-corrosion coating

Customization Options

Bearing bar depth
Bearing bar thickness
Bearing bar pitch
Cross bar pitch
Span and Width (mesh size)

Common Applications

Flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

Material Specifications

Material Standard	Bearing Bar	Cross Bar	Bearing Bar Pitch	Cross Bar Pitch
Q235	25mm*3mm	5mm	20mm	50mm
	25mm*5mm
	30mm*3mm
Q345	30mm*5mm	5mm	27mm	50mm
Q345	32mm*3mm	5mm	27mm	50mm
ASTM A36	32mm*5mm	6mm	30mm	100mm
	35mm*5mm
	40mm*3mm
	40mm*5mm
ASTM A1011	50mm*5mm	8mm	32mm	100mm
	60mm*5mm
	60mm*8mm
	75mm*5mm
	75mm*8mm

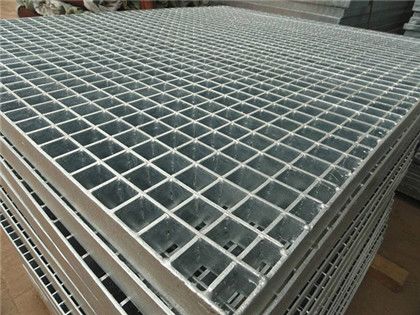

Close-up view of steel grating surface texture

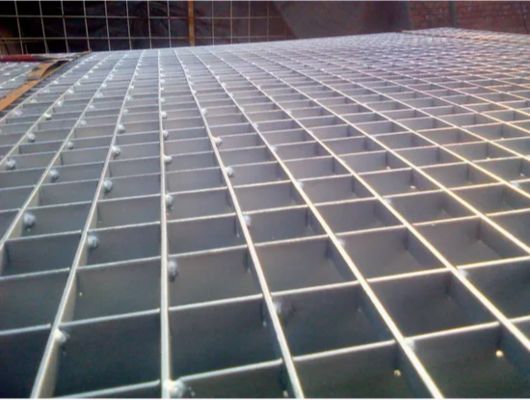

Steel grating installation in industrial setting

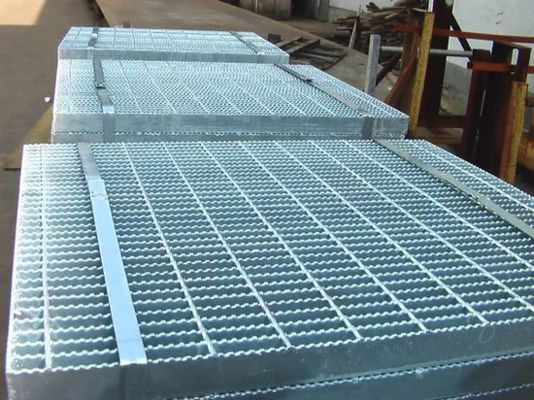

Steel grating used in heavy-duty application

Product Summary

Heavy-Duty Customizable Anti-Corrosion Non-Slip Breathable Steel Grating Galvanized Steel Type Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, ...
