Hot DIP Galvanized Steel Stair Treads with High Strength Bearing Bar Specifications for Durable Anti-Slip Performance

Product Details

Highlight:

High Strength Steel Stair Treads

Durable Galvanized Steel Grating

Bearing Bar Specifications Steel Ladder Treads

Product Description

Hot DIP Galvanized Steel Stair Treads for Step Ladders

Steel stair treads are specialized steel plates designed for stair applications, providing enhanced stability and anti-slip properties. Manufactured from high-strength steel with cut or embossed surfaces, these treads offer superior slip resistance for safe climbing experiences.

These ladder treads are widely used in various building applications including stairs, platforms, and steps, particularly in environments requiring extra stability and anti-slip performance. Suitable for both indoor and outdoor installations, they deliver a secure and comfortable stepping surface.

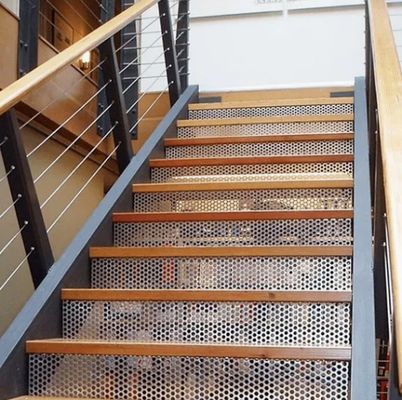

Hot DIP Galvanized Steel Stair Treads product example

Product Specifications

Bearing Bar Specifications (mm): Plain/serrated type: 25×3 to 100×8; I-section type: 25×5×3, 32×5×3, 38×5×3, 40×5×3, 50×5×3, 50×7×4, 55×7×4, 60×7×4, 65×7×4, 70×7×4, 75×7×4
Bearing Bar Pitch (center to center): 12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm (30/40/60mm recommended). American standards available: 1"×3/16", 1-1/4"×3/16", 1-1/2"×3/16", 1"×1/4", 1-1/4"×1/4", 1-1/2"×1/4" (19-w-4)
Material: Mild Steel (Low Carbon Steel) or Stainless Steel
Surface Treatment: Untreated, Painting or Hot DIP Galvanizing
Steel Grating Standards: China: YB/T4001-1998, USA: ANSI/NAAMM (MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JJS

Standard Specifications Table

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load (width×thickness)
30	100	G325/30/100, G405/30/100, G455/30/100, G505/30/100, G555/30/100, G605/30/100
30	50	G325/30/50, G405/30/50, G455/30/50, G505/30/50, G555/30/50, G605/30/50
40	100	G325/40/100, G405/40/100, G455/40/100, G505/40/100, G555/40/100, G605/40/100
40	50	G325/40/50, G405/40/50, G455/40/50, G505/40/50, G555/40/50, G605/40/50
60	50	G325/60/50, G405/60/50, G455/60/50, G505/60/50, G555/60/50, G605/60/50

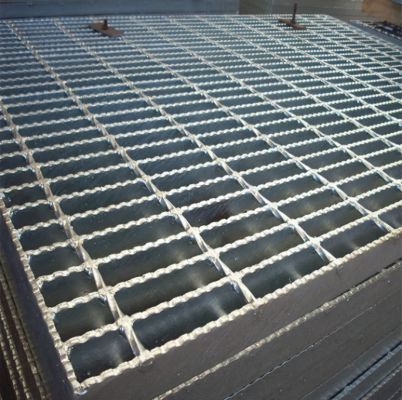

Close-up of steel stair treads surface texture

Product Summary

Hot DIP Galvanized Steel Stair Treads for Step Ladders Steel stair treads are specialized steel plates designed for stair applications, providing enhanced stability and anti-slip properties. Manufactured from high-strength steel with cut or embossed surfaces, these treads offer superior slip ...
