Heavy-Duty Slip-Resistant Galvanized Steel Grating for Walkways and Platforms
Product Summary
Heavy-Duty Steel Grating Panels for Walkways and Platforms Product Overview Steel Bar Grating, also known as Grating, Bar Gratings or Welded Steel Bar Grating, is an extremely strong and durable solution for all load-bearing applications. Primarily used for pedestrian and light vehicle traffic, this ...
Product Details
Highlight:
Stainless Steel Bar Grating
,Aluminum Steel Grating
,Carbon Steel Bar Grating
Product Description
Heavy-Duty Steel Grating Panels for Walkways and Platforms
Product Overview
Steel Bar Grating, also known as Grating, Bar Gratings or Welded Steel Bar Grating, is an extremely strong and durable solution for all load-bearing applications. Primarily used for pedestrian and light vehicle traffic, this product is available in various bearing bar spacing and thicknesses to meet specific application and load requirements. Choose between smooth top or serrated surfaces for enhanced slip resistance.
Available Materials
- Carbon Steel
- Galvanized Steel
- Stainless Steel
- Aluminum
Surface Types
- Flat Type
- Serrated Type
- I Shape
Applications

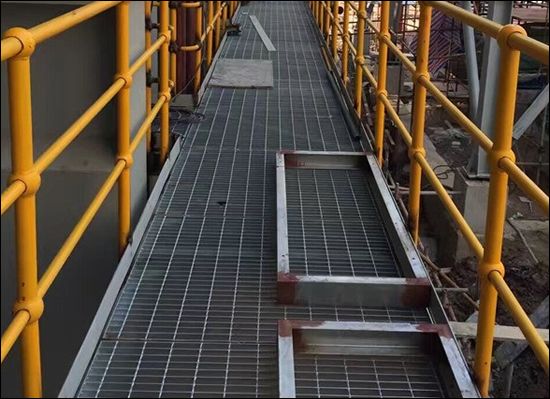

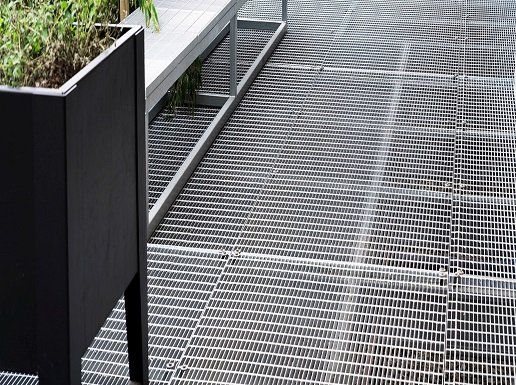

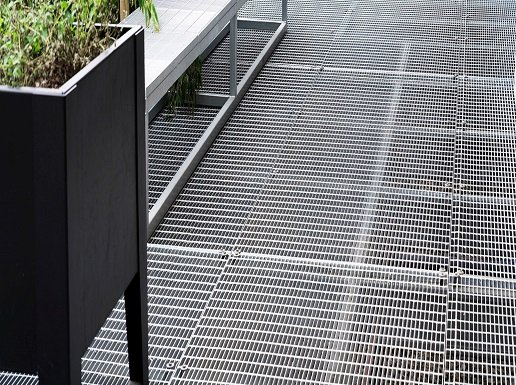

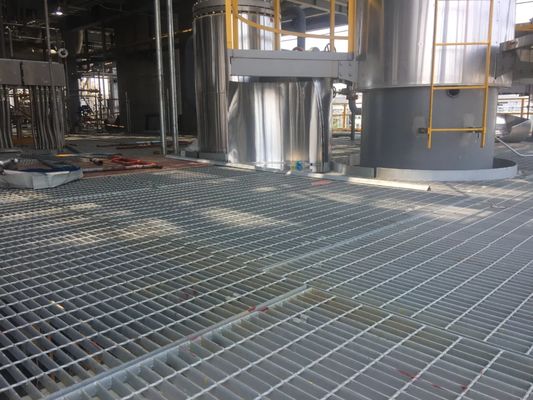

- Platform walkways
- Flooring panels
- Corridors and bridges
- Well covers, drain covers, ditch covers
- Stairs treads
- Fencing for petroleum, chemical, and power plants
- Waste treatment plants
- Civil engineering projects
- Environmental projects
Steel Bar Grating Specifications
Easy-to-understand specification chart for steel bar gratings:
| Vertical Bar Spacing | Horizontal Bar Spacing | Specification of Supporting Flat Steel (Width × Thickness) | |||||
|---|---|---|---|---|---|---|---|
| 20 × 3 | 25 × 3 | 32 × 3 | 40 × 3 | 20 × 5 | 25 × 5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Vertical Bar Spacing | Horizontal Bar Spacing | Specification of Supporting Flat Steel (Width × Thickness) | |||||
|---|---|---|---|---|---|---|---|
| 32 × 5 | 40 × 5 | 45 × 5 | 50 × 5 | 55 × 5 | 60 × 5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
