Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications

Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications
Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications

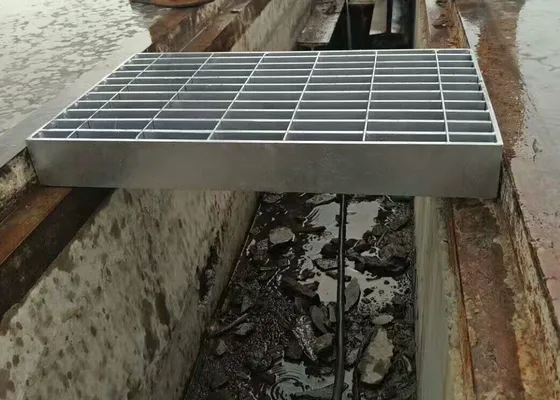

Large Image :  Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications

Product Details:
Contact Now

Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications

Description
Highlight:

Aluminum Steel Bar Grating

,

Catwalk Deck Steel Grating

,

Floor Steel Metal Grating

Heavy Duty 19W4 Steel Bar Grating for Walkways and Platforms
Our high-strength steel bar grating is constructed from durable carbon steel, aluminum steel, or stainless steel. Available in welded, press-locked, swage-locked, and riveted varieties with smooth or serrated surface options, these gratings are ideal for stair treads, walkways, platforms, floors, covers, and heavy-duty construction applications.
Surface Treatment Options
Carbon Steel Finishes:
  • Black/Bare Steel: Most economical option with minimal corrosion resistance
  • Painted Coat: Moderate rust protection with customizable colors
  • Electro-galvanized: Light zinc coating suitable for dry environments
  • Hot-dip galvanized: Premium corrosion protection compliant with ASTM A123/GB/T 13912-2002
Stainless Steel Finishes:
  • Pickling Passivation: Creates uniform silver-white matte surface
  • Electrolytic Polishing: Produces bright reflective finish
Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications 0
Installation Accessories
Our durable steel grating accessories provide secure installation with high strength and rust-proof performance:
  • Saddle clips: Removable bent-clip fasteners
  • G-clips: Friction fasteners for multiple metal types
  • Grate fast clips: Top-side installation without drilling
  • Weld lugs: For removable grating applications
  • Z-clip: Versatile anchor for riveted grating
  • R-clip: Customizable formed metal fastener
  • Countersunk land: Aluminum grating exclusive
  • Anchor block: Permanent or removable panel fastening
Product Specifications
Material: Carbon Steel, Stainless Steel, Aluminum
Surface Treatment: Hot-dip galvanized, Spray painting, Polished, Powder coated
Bearing Bar Type: Plain (Flat) bar, Serrated bar, I-bar
Bearing Bar Pitch (mm) Cross Bar Pitch (mm) Bearing Bar Size
30 100 WSG_203/253/323/403/205/325/405/455/505/555_30_100
30 50 WSG_203/253/323/403/205/325/405/455/505/555_30_50
40 100 WSG_203/253/323/403/205/325/405/455/505/555_40_100
40 50 WSG_203/253/323/403/205/325/405/455/505/555_40_50
60 50 WSG_203/253/323/403/205/325/405/455/505/555_60_50
Contact us for custom dimensions or specific specifications.
Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications 1
Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications 2
Aluminum Steel Bar Grating for Catwalk Deck and Floor Steel Applications 3
