19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms
19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

Large Image :  19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

Product Details:
Brand Name: Gnee
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Packaging Details: Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time: Shipped in 20 days after payment
Supply Ability: 300000 Square Meter/Square Meters per Month
Contact Now

19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms

Description
Highlight:

19W4 Steel Bar Grating

,

Aluminum Metal Grating

,

Catwalk Deck Floor Grating

Heavy Duty 19W4 Aluminum, Galvanized Steel, Stainless Steel Bar Grating

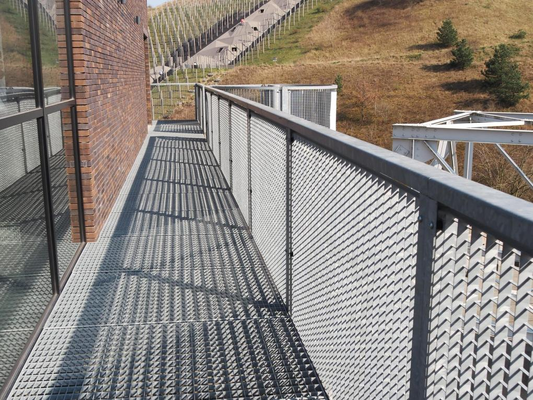

Our high-strength steel bar grating features a firm structure and is available in carbon steel, aluminum steel, or stainless steel. Manufactured using various methods including welded, press-locked, swage-locked, and riveted techniques. Available in both smooth and serrated surface patterns, these gratings offer versatile solutions for stair treads, walkways, platforms, floors, covers, and heavy-duty construction applications.
19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 0 19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 1
Standard Specifications
Pitch of Bearing Bar Cross-bar Pitch Specification of Bearing Bar (width×thickness)
30 100 G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
Pitch of Bearing Bar Cross-bar Pitch Specification of Bearing Bar (width×thickness)
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
Material Specifications
Materials:
Q195, Q235, Q235B / 304, 316 Stainless Steel
Bearing Bar:
  • 25×3, 25×4, 25×4.5, 25×5
  • 30×3, 30×4, 30×4.5, 30×5
  • 32×5, 40×5, 50×5, 65×5
  • 75×6, 75×10---100×10mm
  • I bar: 25×5×3, 30×5×3, 32×5×3, 40×5×3
  • US standard: 1"×3/16", 1 1/4"×3/16", 1 1/2"×3/16"
  • 1"×1/4", 1 1/4"×1/4", 1 1/2"×1/4"
  • 1"×1/8", 1 1/4"×1/8", 1 1/2"×1/8"
Bearing Bar Pitch:
12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm
US Standard:
19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
Twisted Cross Bar Pitch:
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
Steel Grade:
ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel
Surface Treatment:
Black, self color, hot dip galvanized, painted, spray coating
Grating Style:
Plain / Smooth, Serrated / teeth, I bar, serrated I bar
19W4 Aluminum Steel Bar Grating for Catwalk Deck and Heavy Duty Walkway Platforms 2
