Heavy Duty Q235/Q345 Carbon Steel Grating with 3/4/5/6/8/9/10mm Thickness and 5 Years Warranty

Brand Name:Gnee
Certification:ISO9001
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:

Q235/Q345 Carbon Steel Grating

,

3/4/5/6/8/9/10mm Steel Grating

,

5 Years Warranty Bar Grating
Product Description
Heavy Duty Eco-Friendly Galvanized Steel Grating for Robust Drainage Solutions

Our high-grade steel grating undergoes specialized treatment processes to ensure maximum durability and corrosion resistance:

Pickling Process

After production, the grating is pickled to remove scale and discoloration caused by welding, which can lead to corrosion. This immersion process cleans the surface, leaving it metallically pure and corrosion-resistant.

Hot Dip Galvanizing

Our hot-dipped galvanized steel grating is submerged in molten zinc, creating a strong metallurgical bond between the zinc and steel. This results in a durable, corrosion-resistant protective layer.

Powder Coating

A cost-effective, durable coloring solution that includes:

  • Degreasing and pickling
  • Zinc-phosphating
  • Electrostatic powder application
  • Baking at 180°C

For enhanced corrosion protection, we combine hot-dip galvanizing with powder coating. Available in all RAL colors with various gloss levels and textures.

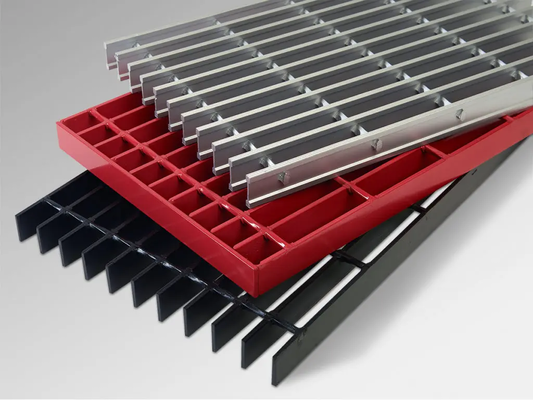

Heavy duty galvanized steel grating product photo
Product Name Steel Grating
Specification 200*500*30, 200*1000*20, 200*1000*30, 250*500*20, 250*500*30, 250*1000*20, 250*1000*30, 300*500*20, 300*500*30, 300*1000*20, 300*1000*30, 350*500*30, 350*1000*30, 400*600*30, 400*1000*30, 400*1000*60
Product Material Q235/Q345 Carbon Steel/Stainless steel
Grating Style Plain/Smooth, Serrated/Teeth, I bar, Serrated I bar
Surface Treatment Hot-dipped galvanized, Powder coated, Electroplate, Untreated (black), Painting or as per customers' requirement
Sheet Thickness 3/4/5/6/8/9/10mm
Standard
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Application Platform, Walkway, Trestle, Ditch Cover, Manhole Cover, Ladder, Fence, etc
Warranty 5 Years
Surface Treatment Options

We provide four finishes for anti-corrosion treatment of carbon steel bar grating:

  • Black/Bare Steel: No finish, shortest lifespan but most economical option
  • Painted Coat: General anti-rust protection, available in any color
  • Electro-galvanized: Light zinc coating, may experience slight corrosion in humid environments
  • Hot-dip galvanized: Our most recommended method providing superior anti-rust protection, compliant with ASTM A123 or GB/T 13912-2002 standards
Close-up of galvanized steel grating surface treatment
