Galvanized Carbon Steel Expanded Metal Mesh and Sheet with 0.1-10mm Thickness for Industrial and Construction Use

Brand Name:Gnee

Certification:ISO9001

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Galvanized Carbon Steel Expanded Metal Mesh

0.1-10mm Thickness Expanded Metal Sheet

Industrial Use Expanded Metal Mesh

Product Description

Expanded Metal Steel Walkway Grating / Pulled Plate Expanded Wire Mesh

Expanded metal mesh, also known as pulled plate wire mesh, is created by slitting and drawing a rigid metal sheet into an open mesh pattern in a single operation. This process results in a material that is stronger, lighter, and more rigid than the original base metal.

Material Options

Available in carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, and aluminum-magnesium alloy panels. Conventional mesh features a diamond pattern, with other options including hexagonal, round, triangle, and scale-like openings.

Key Features

Material: Superior quality galvanized, stainless, aluminum, and brass sheet
Sheet thickness: 0.1-10mm
Width: 0.2-2.4m
Length: 0.5-5m
Opening shapes: Round, oval, hexagonal, diamond, etc.
SWDxLWD: 2mmx4mm~100mmx200mm

Applications

Expanded metal mesh is widely used in industrial applications, construction, building projects, railway and highway infrastructure, mechanical maintenance, musical facilities, electrical equipment protection, air filtration, windows, and aquatic breeding environments.

Specifications

Sheet Thickness (mm)	Opening in Width (SWD) mm	Opening in Length (LWD) mm	Stem	Roll Width mm	Roll Length mm	Weight kg/m2
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35

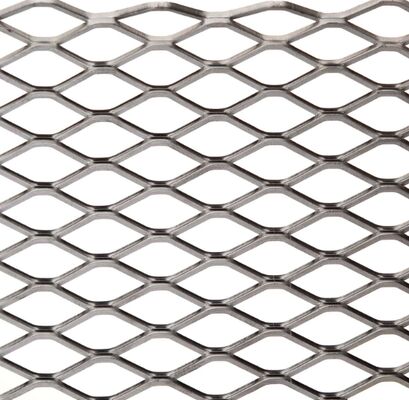

Galvanized steel expanded metal mesh product example

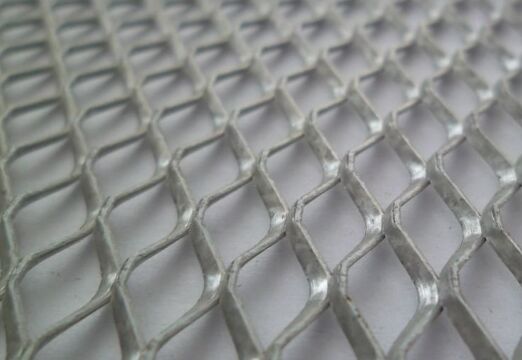

Close-up view of expanded metal mesh pattern

Product Summary

Expanded Metal Steel Walkway Grating / Pulled Plate Expanded Wire Mesh Expanded metal mesh, also known as pulled plate wire mesh, is created by slitting and drawing a rigid metal sheet into an open mesh pattern in a single operation. This process results in a material that is stronger, lighter, and ...
