Welded Stainless Steel Bar Grating with 2" and 4" Cross Bar Spacing and 15/16" Bearing Bar Spacing for High Strength and Durability

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

2" Cross Bar Spacing Stainless Steel Bar Grating

4" Cross Bar Spacing Stainless Steel Grating

15/16" Bearing Bar Spacing Steel Bar Grating

Product Description

Welded Stainless Steel Bar Grating

Our stainless steel bar gratings offer exceptional strength, durability, and corrosion resistance for load-bearing applications in demanding environments. Designed for long-term service, these gratings provide an economical solution for industrial and architectural applications.

Key Features

Ideal for sanitary or highly corrosive environments
Suitable for architectural applications
Available in multiple alloy types (304, 304L, 316, 316L)
Multiple construction options: press welded, manually welded, press locked, swage locked
Standard plain or optional serrated work surfaces
Wide range of industrial applications

Applications

Commonly used as walkways, catwalks, platforms, stairways, entranceways, and trench gratings in:

Water treatment facilities
Chemical processing plants
Oil and gas production facilities
Food processing plants, breweries, and dairies
Sewage and power plants
Hydrocarbon facilities

Technical Specifications

Specification	Description
Material	304, 304L, 316, 316L stainless steel
Manufacturing Process	Welded, swage-locked, or press-locked
Surface Type	Standard plain surface, serrated surface
Cross Bar Spacing	2" or 4", center to center
Bearing Bar Spacing	15/16" or 1-3/16", center to center
Bearing Bar Height	20mm to 60mm
Bearing Bar Thickness	2mm to 5mm
Cross Bar Size	4mm to 10mm diameter
Slip Resistance	Serrated or plain surface, depending on application
Installation Method	Welding, clips, or bolts and nuts
Compliance	Meets ASTM, ISO, and ANSI/NAAMM standards

For more information on safe load data, please contact us. Our engineers will be happy to provide detailed specifications.

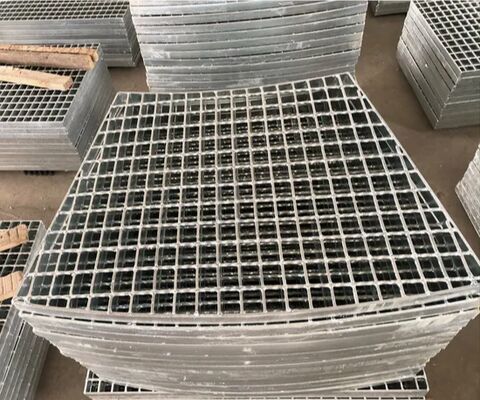

Stainless steel bar grating installation example

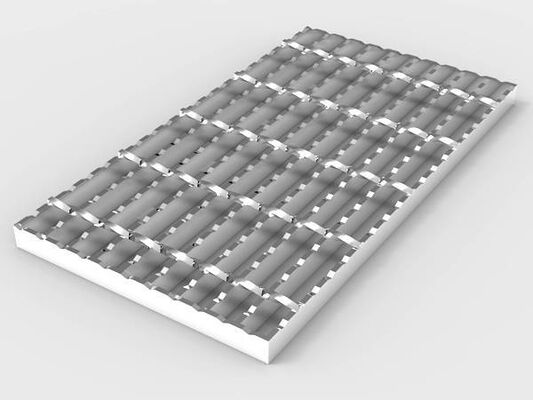

Close-up view of stainless steel bar grating surface

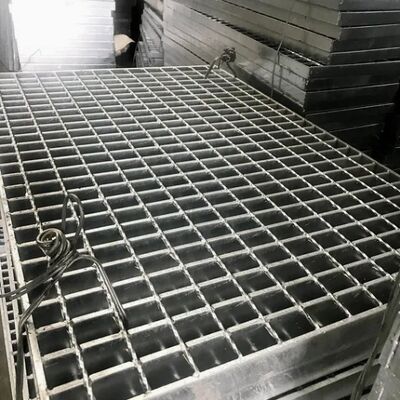

Industrial application of stainless steel bar grating

Product Summary

Welded Stainless Steel Bar Grating Our stainless steel bar gratings offer exceptional strength, durability, and corrosion resistance for load-bearing applications in demanding environments. Designed for long-term service, these gratings provide an economical solution for industrial and architectural ...
