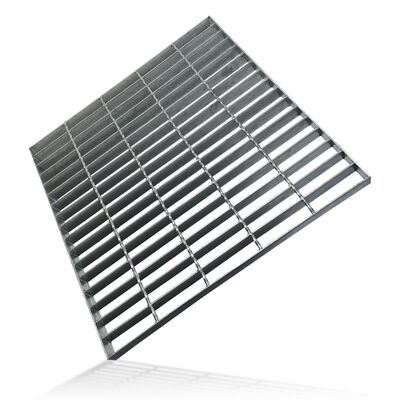

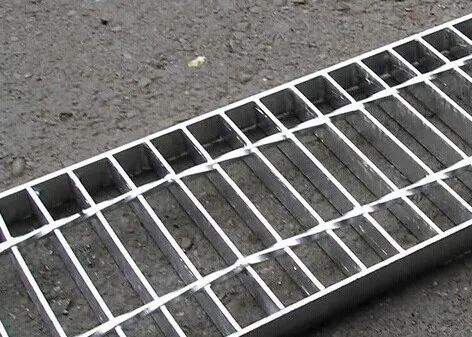

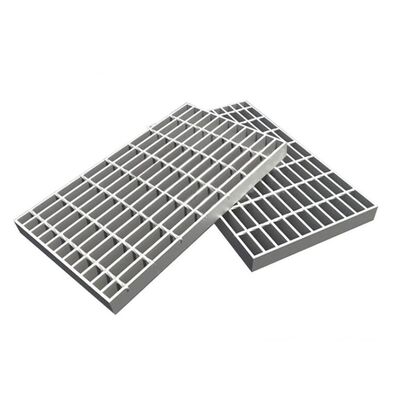

Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications

Large Image : Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications

Product Details:

Brand Name:	Gnee

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Packaging Details:	Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time:	Shipped in 20 days after payment
Supply Ability:	300000 Square Meter/Square Meters per Month

Contact Now

Welded Steel Grating Drain Cover with Stainless Steel and Galvanized Finish for Heavy Duty Applications

Description

Highlight:

Welded Steel Grating

Stainless Steel Drain Cover

Galvanized Bar Grating

Steel Grating Grating Size Stainless Steel Grating Steel Grating Cover

Product Overview

Steel Bar Grating, also known as welded steel bar grate, is an extremely strong and durable solution for all load bearing applications, primarily used for pedestrian and light vehicle traffic.

Available in a variety of bearing bar spacing and thickness options to meet different application requirements and load capacities. Offered in either smooth top or serrated versions for slip resistance.

Standard Specifications

Specification	Details
Material Standard	ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304, Mild steel & Low carbon steel, etc
Bearing Bar (width x thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4.5, 30x5, 40x5, 50x5, 65x5, 75x6,75x10, 100x10mm, etc. I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8", etc.
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41, 41.25, 60, 80mm, etc. US Standard: 19-W-4, 15-W-4, 11-W-4, 19-W-2, 15-W-2, etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2"&4", etc.
Surface treatment	Untreated(black), hot dipped galvanized, powder coated, electroplate, painting or as per customers' requirements
Grating Types	Plain/Smooth, Serrated/teeth, I bar, serrated I bar, Serrated I bar
Exporting Packing Ways	LCL(Less than one container load): packed with plastic film + wooden pallets FCL(full container load): nude packing Other special packages: according to customers' request

Special specifications can be ordered according to your requirements!

Load Size Specifications

Bearing bar pitch	Cross bar pitch	Load steel size (width x thickness)
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50

Bearing bar pitch	Cross bar pitch	Load steel size (width x thickness)
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
