Factory Directly Supplying High Strength Stainless Steel Grating Drain Cover with Natural Surface Treatment

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

High Strength Steel Grating Drain Cover

Natural Surface Treatment Drainage Grating

Factory Directly Supplying Stormwater Drain Cover

Product Description

Factory Direct Stainless Steel Grating Cover for Drainage Systems

Our welded steel bar grating provides exceptional strength and durability for load-bearing applications, ideal for pedestrian walkways and light vehicle traffic areas. Available in multiple configurations to meet various load requirements and safety standards.

Key Features

Available in smooth top or serrated surface options for slip resistance
Engineered for optimal water flow and debris resistance
Customizable sizes to fit diverse application requirements
Durable construction withstands harsh weather conditions
Ideal for roads, parking lots, and residential properties

Technical Specifications

Material Standard	ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304, Mild steel & Low carbon steel
Bearing Bar (width x thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4.5, 30x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 US Standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8"
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41, 41.25, 60, 80mm US Standard: 19-W-4, 15-W-4, 11-W-4, 19-W-2, 15-W-2
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2"&4"
Surface Treatment	Untreated (black), hot dipped galvanized, powder coated, electroplate, painting or custom
Grating Types	Plain/Smooth, Serrated/teeth, I bar, serrated I bar
Packaging Options	LCL: Plastic film + wooden pallets FCL: Nude packing Custom packaging available

Special specifications available upon request to meet your specific project requirements.

Product Images

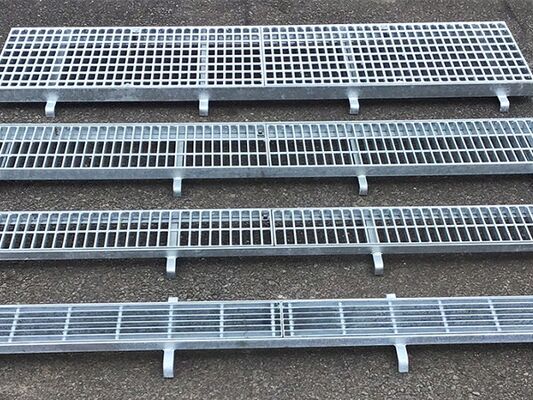

Stainless steel grating cover installation example

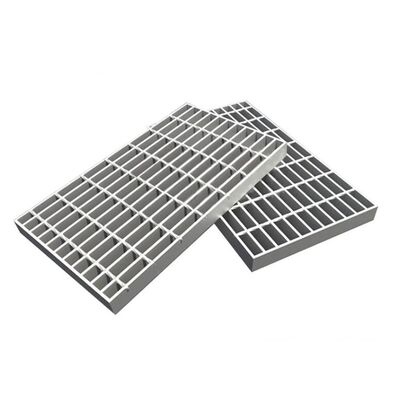

Close-up view of steel grating surface texture

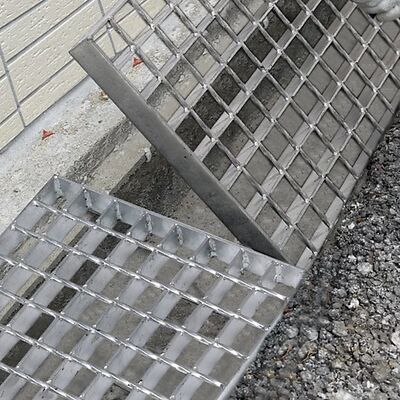

Drainage system with steel grating cover in urban setting

Product Summary

Factory Direct Stainless Steel Grating Cover for Drainage Systems Our welded steel bar grating provides exceptional strength and durability for load-bearing applications, ideal for pedestrian walkways and light vehicle traffic areas. Available in multiple configurations to meet various load ...
