High Strength Steel Grating Trench Cover with Serrated Surface and Easy Installation

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Serrated Surface Steel Grating

Easy Installation Trench Cover

Load-Bearing Capacity Drain Cover

Product Description

Steel Grating Trench Drain Cover

Steel grating trench covers are protective coverings made of durable steel grating material, designed to safeguard trenches, drainage channels, ditches, and other ground openings. Constructed with steel bars in a grid-like structure, these covers offer exceptional strength and load-bearing capacity.

These trench covers effectively prevent debris, garbage, and sediment from entering drainage systems while maintaining proper ventilation. They help prevent water accumulation, blockages, and pollution, creating a safer and cleaner environment. Key features include high strength, corrosion resistance, anti-slip properties, and easy installation, making them ideal for various engineering projects and emergency sites.

Feature	Specifications
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8"
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel
Surface Treatment	Black, self color, hot dip galvanized, painted, spray coating
Grating Style	Plain/Smooth, Serrated/teeth, I bar, serrated I bar
Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Germany: DIN24537-1-2006 Japan: J

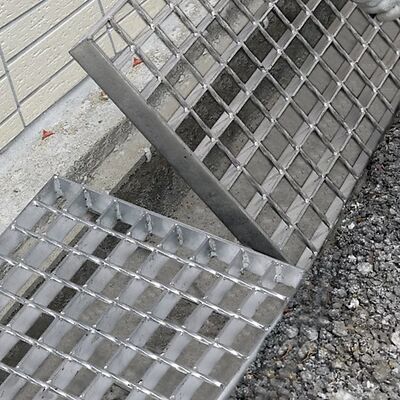

Steel grating trench cover installation example

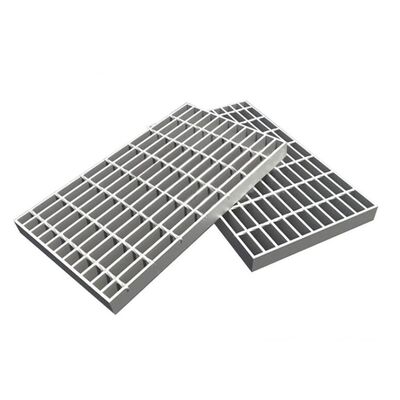

Close-up view of steel grating trench cover

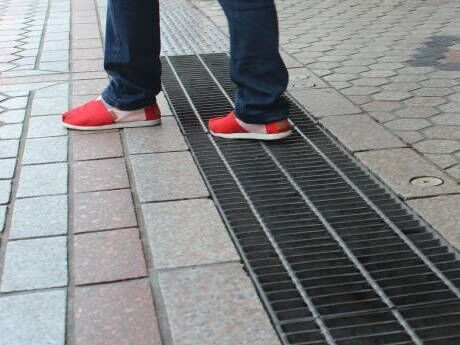

Steel grating trench cover in industrial application

Product Summary

Steel Grating Trench Drain Cover Steel grating trench covers are protective coverings made of durable steel grating material, designed to safeguard trenches, drainage channels, ditches, and other ground openings. Constructed with steel bars in a grid-like structure, these covers offer exceptional ...
