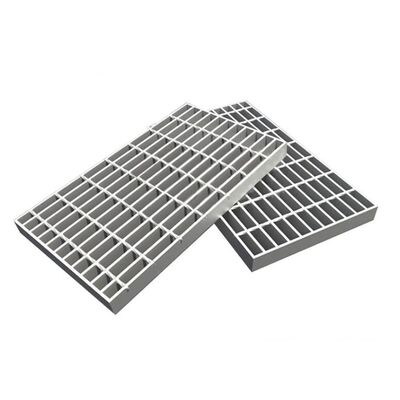

Hot Dip Galvanized Steel Grating Drain Cover with Ventilation Lighting and Heat Dissipation Properties

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Ventilation Steel Grating

Lighting Steel Grating Drain Cover

Heat Dissipation Steel Grid Plate

Product Description

Factory Wholesale Hot DIP Galvanized Drainage Steel Grating

Steel grating, also known as steel grid plate or steel grille, is constructed by arranging flat steel bars at specific intervals and welding them with cross bars (twisted square steel, square steel, round steel, or flat steel) to form a square grid pattern. This durable product is primarily used for drainage covers, structural platforms, and stair treads.

The cross bars are typically made of twisted square steel (twist steel). Constructed from carbon steel with hot-dip galvanization for oxidation resistance, these gratings can also be manufactured in stainless steel. They offer excellent ventilation, lighting, heat dissipation, anti-slip properties, and explosion resistance.

Product Specifications

Feature	Details
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Germany: DIN24537-1-2006 Japan: J

Product Images

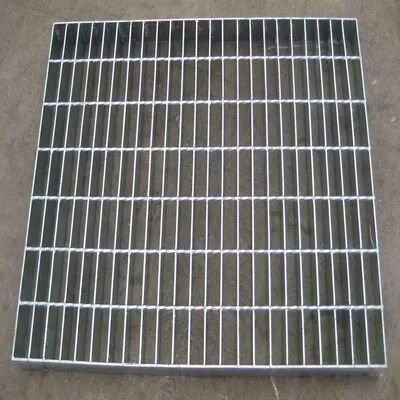

Hot dip galvanized steel grating close-up showing grid pattern

Steel grating installation example as drainage cover

Industrial steel grating used in platform construction

Product Summary

Factory Wholesale Hot DIP Galvanized Drainage Steel Grating Steel grating, also known as steel grid plate or steel grille, is constructed by arranging flat steel bars at specific intervals and welding them with cross bars (twisted square steel, square steel, round steel, or flat steel) to form a ...
