Professional Steel Grating Drain Cover with Q235 SS304 SS316 Material for High Load Capacity

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Q235 Steel Grating Drain Cover

SS304 Steel Drainage Cover

SS316 Outdoor Drain Grates

Product Description

Light Steel Structure Direct Professional Grating Manufacturer Outdoor Drain Grates Steel Drainage Cover

Product Specifications

Steel bar grating bearing bar: 35x5, 32x5, 32x4.5, 32x3, 30x5, 30x3, 25x5, 25x3, etc.
Steel bar grating cross bar diameter: 6mm, 8mm
Type for casting: Pressure welded, pressure locked
Grating surface treatment: Electro-galvanized coated, hot-dipped galvanized coated, stainless steel, untreated
Raw material: Iron or stainless steel
Material model: Q235, Q195, SS304, SS316, etc.
Weight: Depends on the exact type

Delivery & Production Information

Package: In pallet or seaworthy package
Payment term: 100% T/T, or 30% T/T deposit, and also L/C is acceptable
Grating machines: 30, about 4 big machines
Daily supply ability: 500 to 1000 square meters

Standard Grating Specifications

Bearing Bar Pitch	Cross Bar Pitch	Load Steel Size (Width × Thickness)
30	100	G203/30/100, G253/30/100, G323/30/100, G403/30/100, G205/30/100, G255/30/100
	50	G203/30/50, G253/30/50, G323/30/50, G403/30/50, G205/30/50, G255/30/50
	40	100	G203/40/100, G253/40/100, G323/40/100, G403/40/100, G205/40/100, G255/40/100
	50	G203/40/50, G253/40/50, G323/40/50, G403/40/50, G205/40/50, G255/40/50
	60	50	G253/60/50, G253/60/50, G403/60/50, G205/60/50, G255/60/50

Bearing Bar Pitch	Cross Bar Pitch	Load Steel Size (Width × Thickness)
30	100	G325/30/100, G405/30/100, G455/30/100, G505/30/100, G555/30/100, G605/30/100
	50	G325/30/50, G405/30/50, G455/30/50, G505/30/50, G555/30/50, G605/30/50
	40	100	G325/40/100, G405/40/100, G455/40/100, G505/40/100, G555/40/100, G605/40/100
	50	G325/40/50, G405/40/50, G455/40/50, G505/40/50, G555/40/50, G605/40/50
	60	50	G325/60/50, G405/60/50, G455/60/50, G505/60/50, G555/60/50, G605/60/50

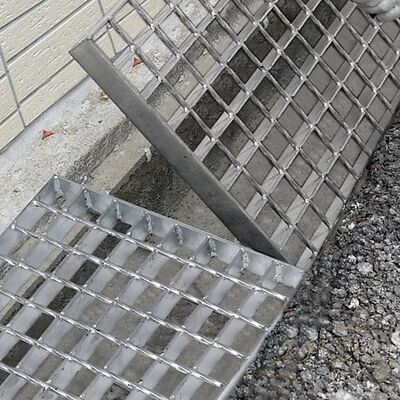

Steel grating product image showing structure and surface detail

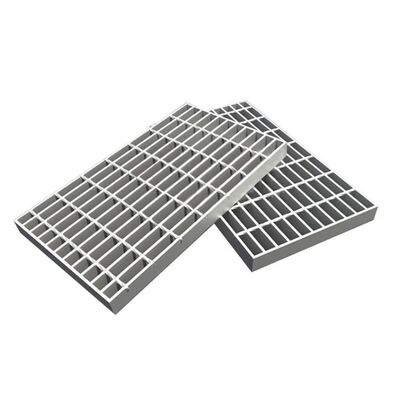

Close-up view of steel grating surface texture

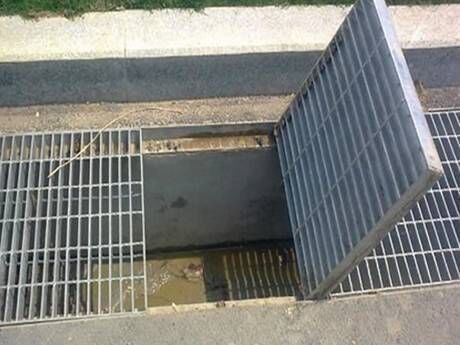

Steel grating installation example in outdoor drainage application

Product Summary

Light Steel Structure Direct Professional Grating Manufacturer Outdoor Drain Grates Steel Drainage Cover Product Specifications Steel bar grating bearing bar: 35x5, 32x5, 32x4.5, 32x3, 30x5, 30x3, 25x5, 25x3, etc. Steel bar grating cross bar diameter: 6mm, 8mm Type for casting: Pressure welded, ...
