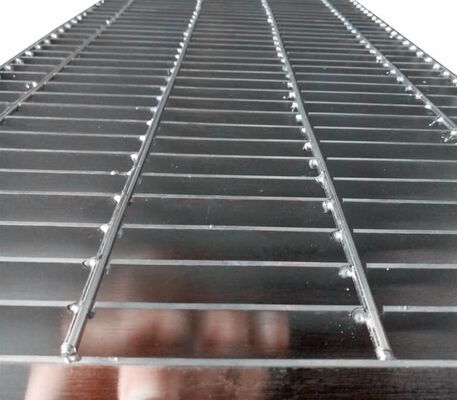

High Quality Galvanised Steel Grating Stainless Steel Carbon Steel Drain Trench Water Grate Covers for Industrial Flooring
Product Details
galvanized steel grating covers
,stainless steel trench grates
,industrial flooring drain covers
High-grade steel grating is typically pickled afterproduction to remove scale and discoloration caused bywelding, which can lead to corrosion. During the picklingprocess, the grating is submerged in a bath that cleansesthe surface, leaving it metallically pure and corrosion-resistant.
Hot-dipped galvanized steel grating involves submergingthe steel grating in molten zinc, a process calledgalvanization. This forms a strong metallurgical bondbetween the zinc and the steel, resulting in a durable.corrosion-resistant protective layer.
Powder coating is a cost-effective, durable way to colorgrating. The process includes degreasing, pickling, zinc.phosphating, and electrostatic powder application, thenbaking at 180°C.For enhanced corrosion protection, thiscoating combines hot-dip galvanizing with powder coatingAvailable in all RAL colors, with different gloss levels andtextures.
|
Material
|
Carbon Steel, Stainless Steel, Aluminum
|
|
|
Surface treatment
|
Hot dipped galvanized, Spray painting, Polished and powder coated
|
|
|
Bearing bar type
|
Plain(Flat) bar, Serrated bar, I-bar, etc.
|
|
|
Common specification
|
||
|
Bearing bar pitch (mm)
|
Cross bar pitch (mm)
|
Bearing bar size
(WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch) |
|
30
|
100
|
WSG_203/253/323/403/205/325/405/455/505/555_30_100
|
|
|
50
|
WSG_203/253/323/403/205/325/405/455/505/555_30_50
|
|
40
|
100
|
WSG_203/253/323/403/205/325/405/455/505/555_40_100
|
|
|
50
|
WSG_203/253/323/403/205/325/405/455/505/555_40_50
|
|
60
|
50
|
WSG_203/253/323/403/205/325/405/455/505/555_60_50
|
|
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
|
||
-
