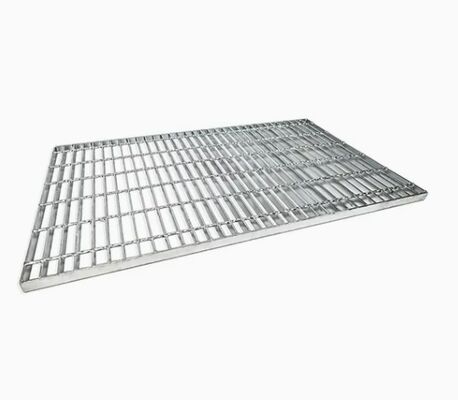

Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors
Basic Properties
Brand Name:
Gnee
Trading Properties
Minimum Order Quantity:
2PCS
Supply Ability:
300000 Square Meter/Square Meters per Month
Product Summary
Stainless Steel Catwalk Deck Floor Bar Grating Steel bar grating features high strength and firm structural integrity, manufactured from carbon steel, aluminum, or stainless steel. Available in multiple manufacturing methods including welded, press-locked, swage-locked, and riveted gratings. Surface ...
Product Details
Highlight:
Heavy Duty Steel Bar Grating
,Stainless Steel Metal Grating
,19W4 Steel Grating
Product Description
Stainless Steel Catwalk Deck Floor Bar Grating
Steel bar grating features high strength and firm structural integrity, manufactured from carbon steel, aluminum, or stainless steel. Available in multiple manufacturing methods including welded, press-locked, swage-locked, and riveted gratings. Surface options include smooth and serrated patterns for enhanced traction. With diverse styles and sizes available, steel gratings are extensively used in stair treads, walkways, platforms, flooring systems, trench covers, wheeled equipment, security screens, and heavy-duty construction applications.
Technical Specifications
Standard Dimensions:
- Bearing Bar Pitches: 15, 22, 25, 30, 32.5, 34, 40, 50, 60, 80, 90mm (25, 30, 34, and 40mm recommended)
- Cross Bar Pitches: 24-200mm (50mm, 76mm, and 100mm recommended)
- Bearing Bar Shapes: F - Plain style, S - Serrated style, I - I-section style
- Surface Treatments: G - Hot dipped galvanized, P - Painted, U - Untreated
Metal Bar Grating Components
| Span | Total span measurement |
| Width | Panel width dimension |
| Bearing Bars | Primary load carrying structural elements |
| Bearing Bars Spacing | Center-to-center measurement in 1/16″ increments. Standard industrial flooring spacing is 19/16″ (1-3/16″). Other common spacings include 15/16″, 11/16″, 1/2″, and 7/16″ on center. |
| Bearing Bars Depth | Ranges from 3/4″ to 7″ depending on load requirements |
| Bearing Bars Thickness | Ranges from 1/8″ to 1/2″ based on anticipated loads |
| Cross Bars | Structural elements that secure bearing bar positioning |
| Cross Bar Spacing | Center-to-center measurement in 1″ increments. Standard spacing is 4″ or 2″ on center. |
