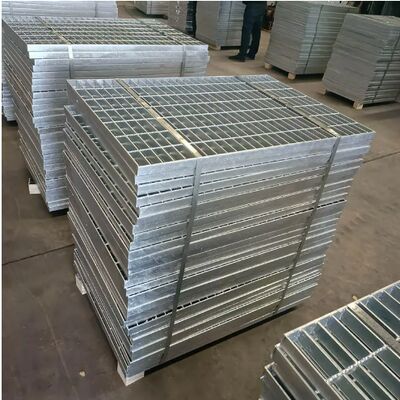

Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Stainless Steel Bar Grating

Serrated Bar Metal Grating

19W4 Steel Grating

Product Description

Stainless Steel Open End Steel Mesh Walkway Channel Trench Driveway Drain Flooring Drainage HDG Serrated Bar Welded Metal Grating

Steel grating is manufactured by welding bearing steel bars and cross twisted bars according to required pitch spacing between steel bars using specialized welding machines. This grid building material offers exceptional strength and durability for various industrial applications.

Product Features

Constructed from high-quality standard steel materials
Excellent hardness and high tensile strength
Extremely strong and durable construction
Superior corrosion resistance
Outstanding anti-slip performance
Available in various spacing pitches, thicknesses, and heights

Surface Finishing Options

Standard steel grating features hot-dipped galvanized coating for maximum corrosion protection. Custom zinc coatings are available according to client specifications. These finishes provide both beautiful surface appearance and excellent performance in industrial construction projects.

Material Specifications

Flat Bars: Low Carbon Steel Smooth, Low Carbon Steel Serrated, Low Carbon I-Shaped Steel Bars
Cross Bars: Steel Twisted Square, Steel Round Cross Bars
Stainless Steel Options: 304 Grade Flat Bars, 316 Grade Flat Bars

Popular Steel Grating Specifications

Item	Bearing Bar (mm)	Cross Bar (mm)	Pitch of Bearing Bar (mm)	Pitch of Cross Bar (mm)
SG253	25x3	6	20,30,40,50	50,100
SG254	25x4	6,8	20,30,40,50	50,100
SG255	25x5	6,8	20,30,40,50	50,100
SG304	30x4	8	20,30,40,50	50,100
SG305	30x5	8	20,30,40,50	50,100
SG355	35x5	8	20,30,40,50	50,100
SG404	40x4	8	20,30,40,50	50,100
SG405	40x5	8	20,30,40,50	50,100
SG455	45x5	8	20,30,40,50	50,100
SG505	50x5	8	20,30,40,50	50,100
SG605	60x5	8	30,40,50,60	50,100
SG705	70x5	8	30,40,50,60	50,100

Steel grating installation in industrial walkway application

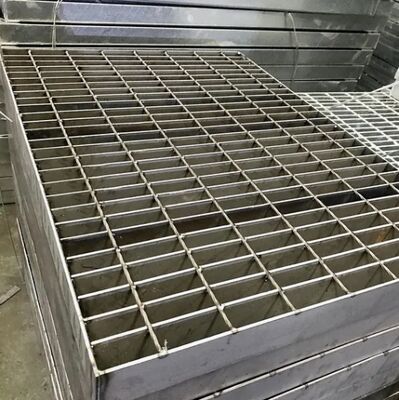

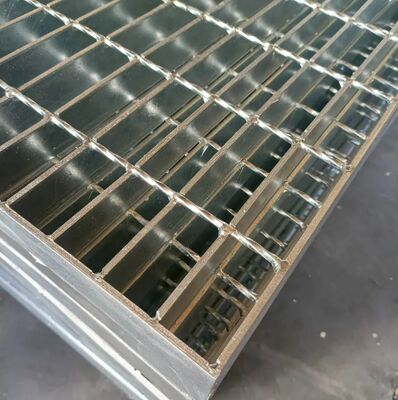

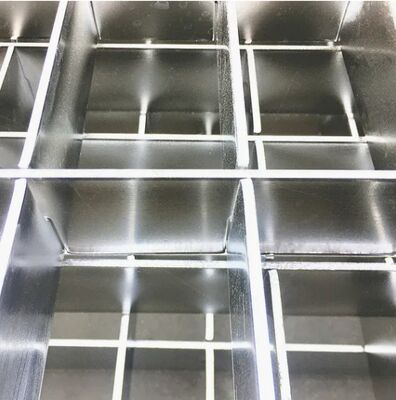

Close-up view of welded steel grating showing serrated bar design

Product Summary

Stainless Steel Open End Steel Mesh Walkway Channel Trench Driveway Drain Flooring Drainage HDG Serrated Bar Welded Metal Grating Steel grating is manufactured by welding bearing steel bars and cross twisted bars according to required pitch spacing between steel bars using specialized welding ...
