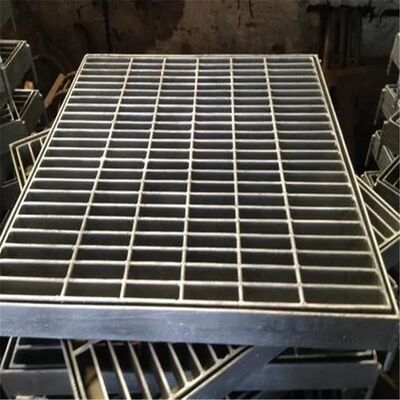

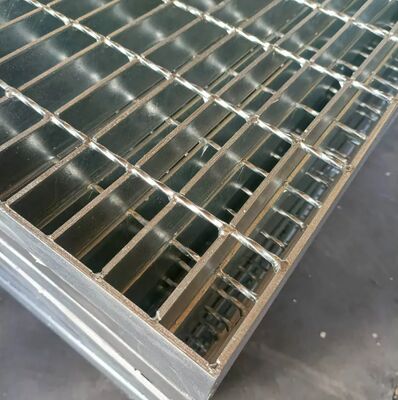

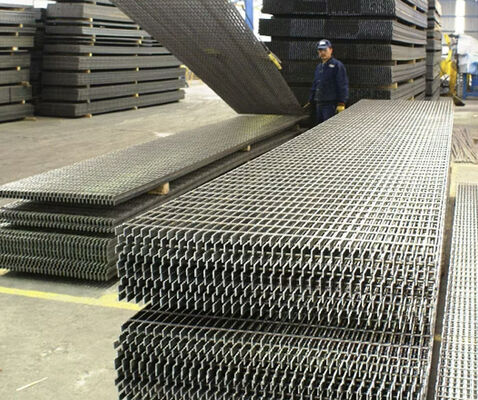

Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications
Basic Properties
Brand Name:
Gnee
Trading Properties
Minimum Order Quantity:
2PCS
Supply Ability:
300000 Square Meter/Square Meters per Month
Product Summary
Factory Customized Steel Grating Solutions Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicula...
Product Details
Highlight:
Hot Dipped Galvanized Steel Grating
,Customizable Sizes Bar Grating
,High Load-Bearing Metal Grating
Product Description
Factory Customized Steel Grating Solutions

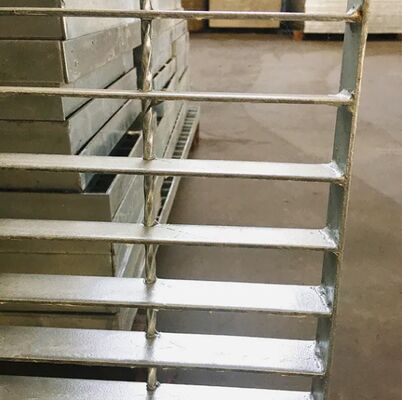

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them. This versatile product is widely used as floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in industrial settings including factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Product Specifications
| Product Name | Steel Bar Grating |
| Material | Mild Steel (Low Carbon Steel), S235, S275JR, A36, Stainless Steel SS304, SS316, Aluminum 3003, 5052 |
| Surface Treatment | Hot dipped galvanized, polished, or untreated |
| Bearing Bar (Width x Thickness) | 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 75x10mm |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm US standard: 1"x3/16", 1¼"x3/16", 1½"x3/16", 1"x¼", 1¼"×¼", 1½"x¼" etc. |
| Cross Bar Pitch | 38, 50, 76, 100, 101.6mm or customized |
Standard Grating Specifications
Bearing Bar: 20×3 to 60×5
| Bearing Bar Pitch | Cross-bar Pitch | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 30 | 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 40 | 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Applications
- Working Platforms
- Handrail Infill
- Walkways
- Bridge Decking
- Stair Treads
- Transformer Reservoir
- Trench Covers
- Ceiling Systems
- Grating Fence
- Sunshade Panels
